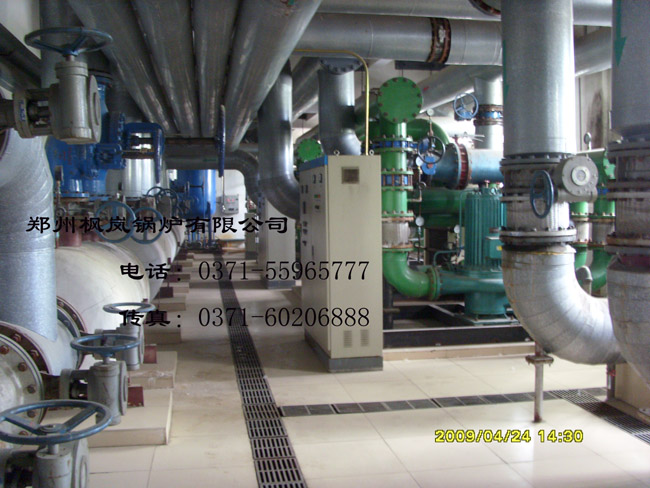

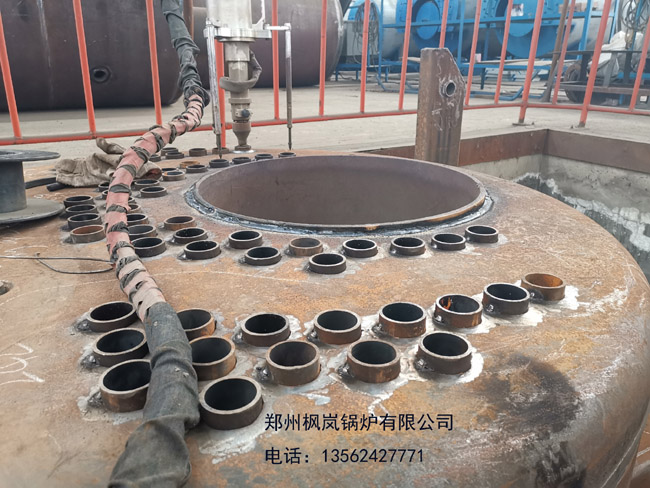

Installation of hot blast furnace pipes

Heating system

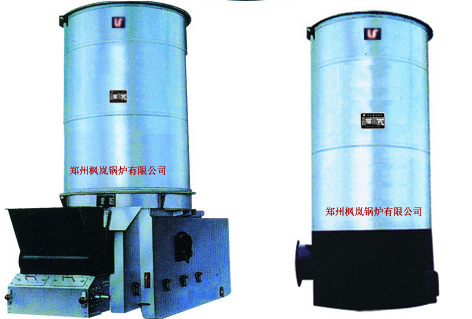

Coal-fired hot stove

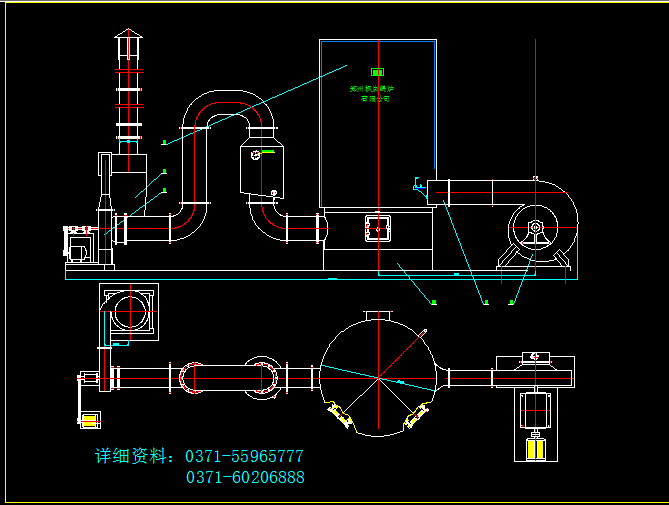

Schematic diagram of hot blast stove installation system

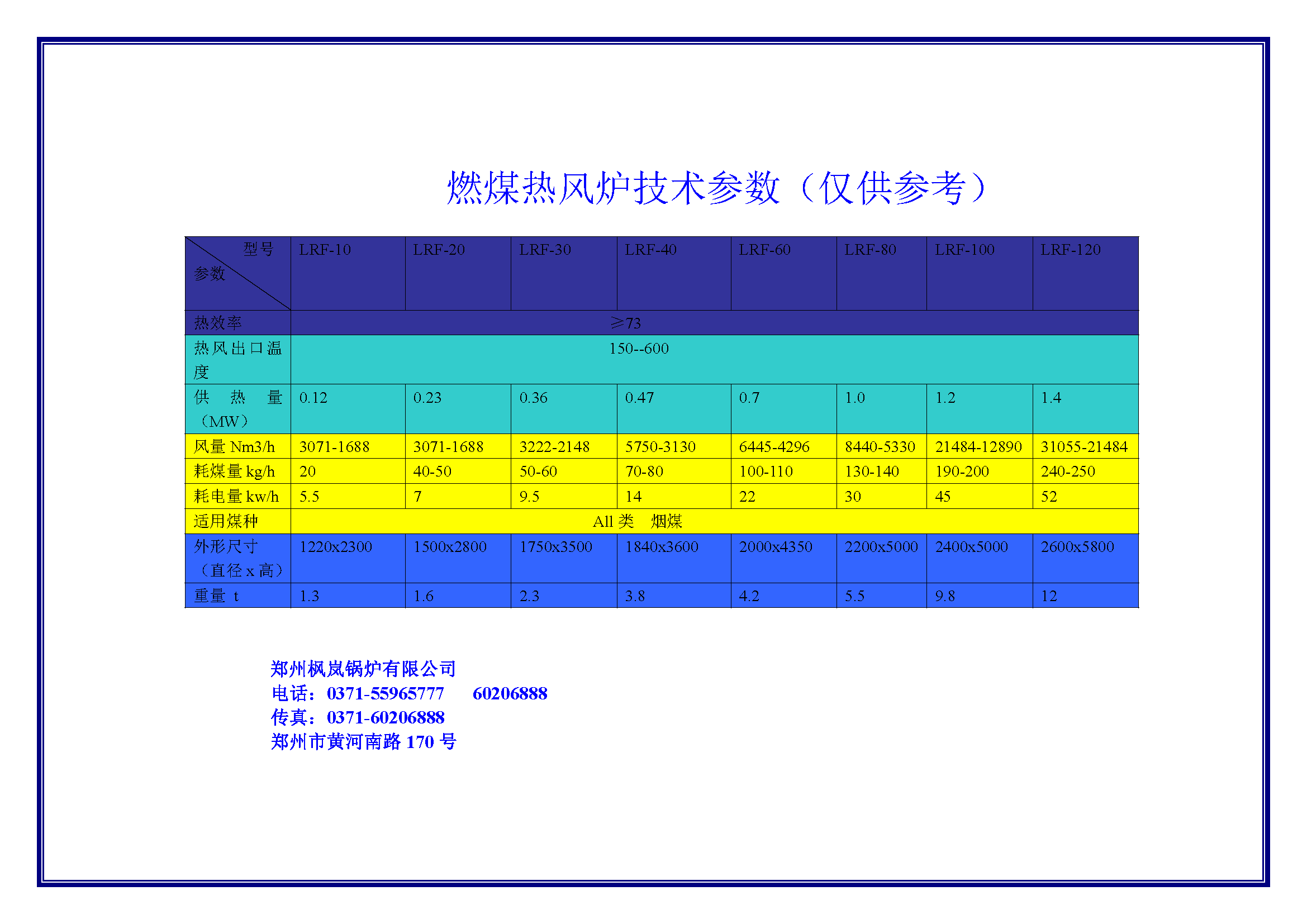

Calculation of energy consumption in hot blast stove parameter table

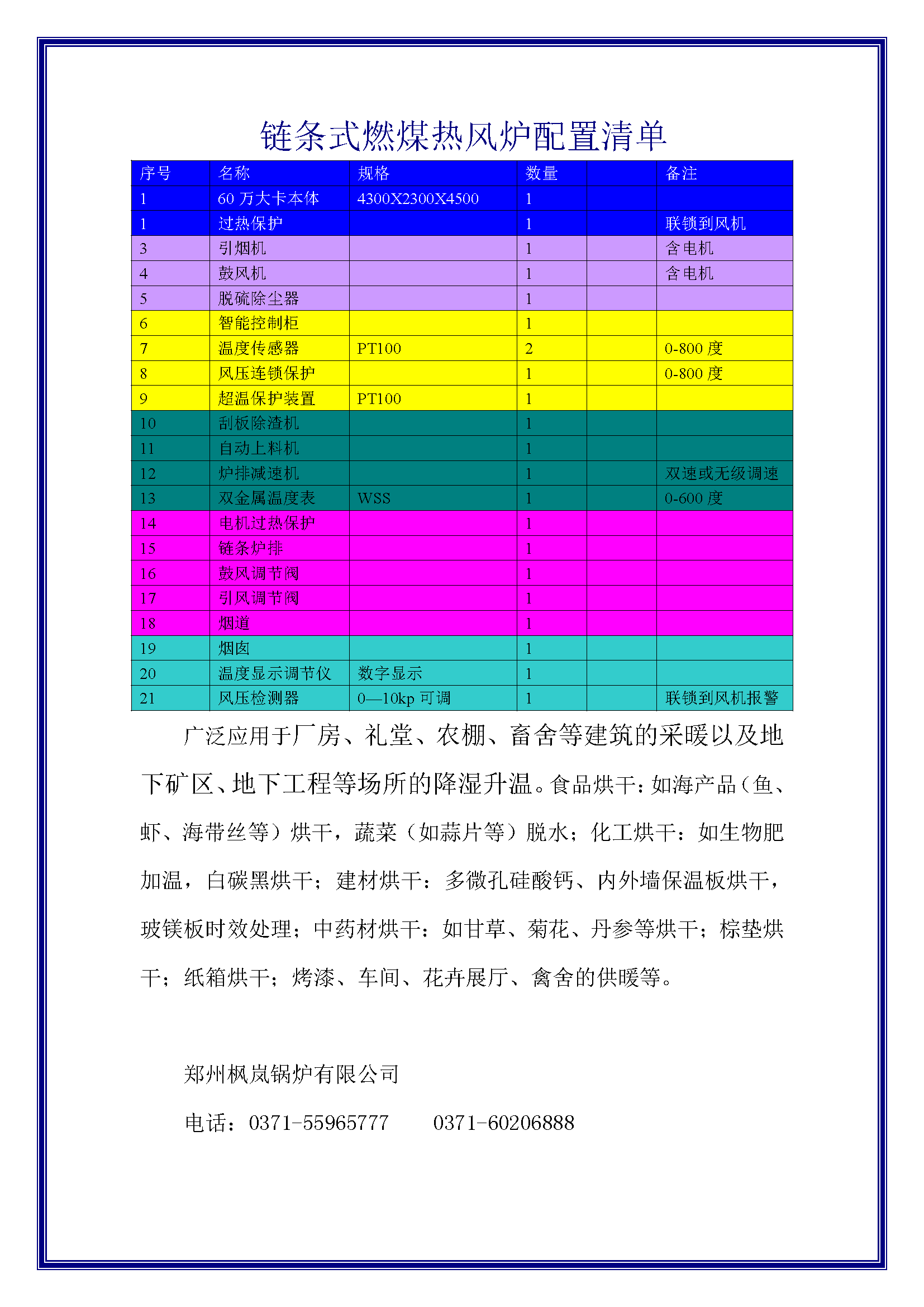

Hot blast stove (simple nonlocking) configuration tables



fenglan company development of high temperature hot blast stove adopts vertical multipass structure, the hot blast temperature can reach 600 ℃ drying process。



USES the long spiral groove plate heat exchange technology and the principle of turbulence, greatly enhanced heat transfer effect.
All steel multi-layer bushing structure, air and flue gas are double return, improves the thermal efficiency.
Combustion and heat exchanger design, compact structure.
Without pressure, this series of hot blast stove, no explosion danger, high heating temperature.
A range of heating, hot air temperature can be adjusted according to the use of automatic process control.
Flow with air as medium, hot air clean pollution-free, environmental protection very much.
More suitable for areas where poverty is lack of water use.
Scope of application: wood chemical industry, food, medicine tobacco metallurgy ceramic drying forage feed and industrial materials, printing and dyeing drying paint industry, factory building, hall, plastic greenhouse heating, underground mines, underground engineering and so on need of dehumidification drying temperature
The function of the hot blast stove is very much, if you choose to according to their requirements. Dry heating stove, for example, it has hot air clean, fast, no hot water boiler water processor, radiators and other ancillary equipment, there is no pressure to enable convenient, low cost, compared with hot water, steam boiler, investment save more than 40%, operation cost can save more than 30%, is widely used in food drying, such as seafood (fish, shrimps, kelp silk, etc.) drying, vegetables (such as garlic) dehydration; Chemical drying: such as biological fertilizer heating, white carbon black drying; Building materials drying: many microporous calcium silicate, exterior insulation board drying, glass magnesium board aging treatment; Chinese herbal medicine drying, such as liquorice, chrysanthemum, salvia miltiorrhiza drying; Mat drying; Carton drying; The lacquer that bake, workshop, flower exhibition hall, birdhouse, heating, etc.
