YLW coal-fired chain horizontal heat conduction oil furnace

Heat conduction oil furnace (organic heat carrier)

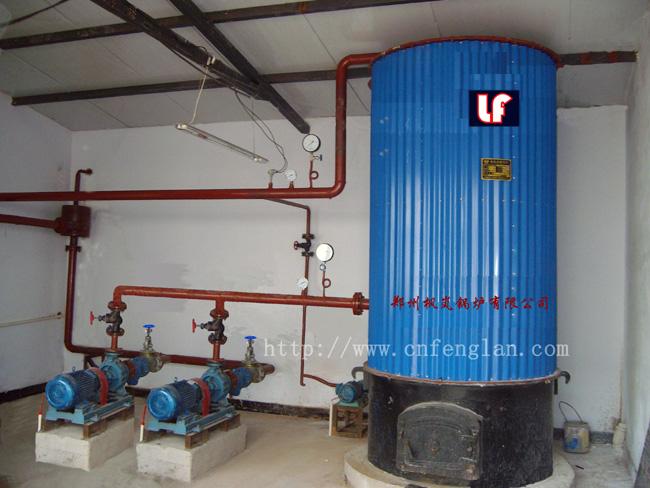

Coal-fired heat-conducting oil furnace Zhangbei Grassland

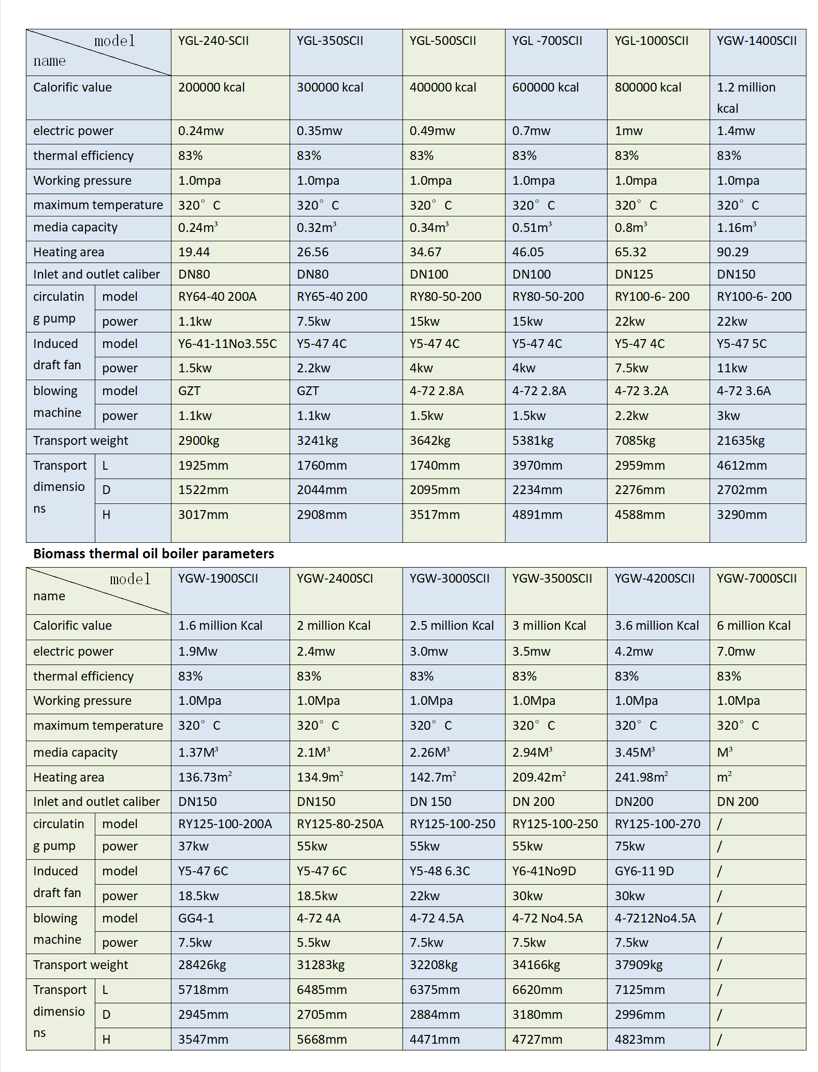

Technical parameters of heat conduction oil furnace

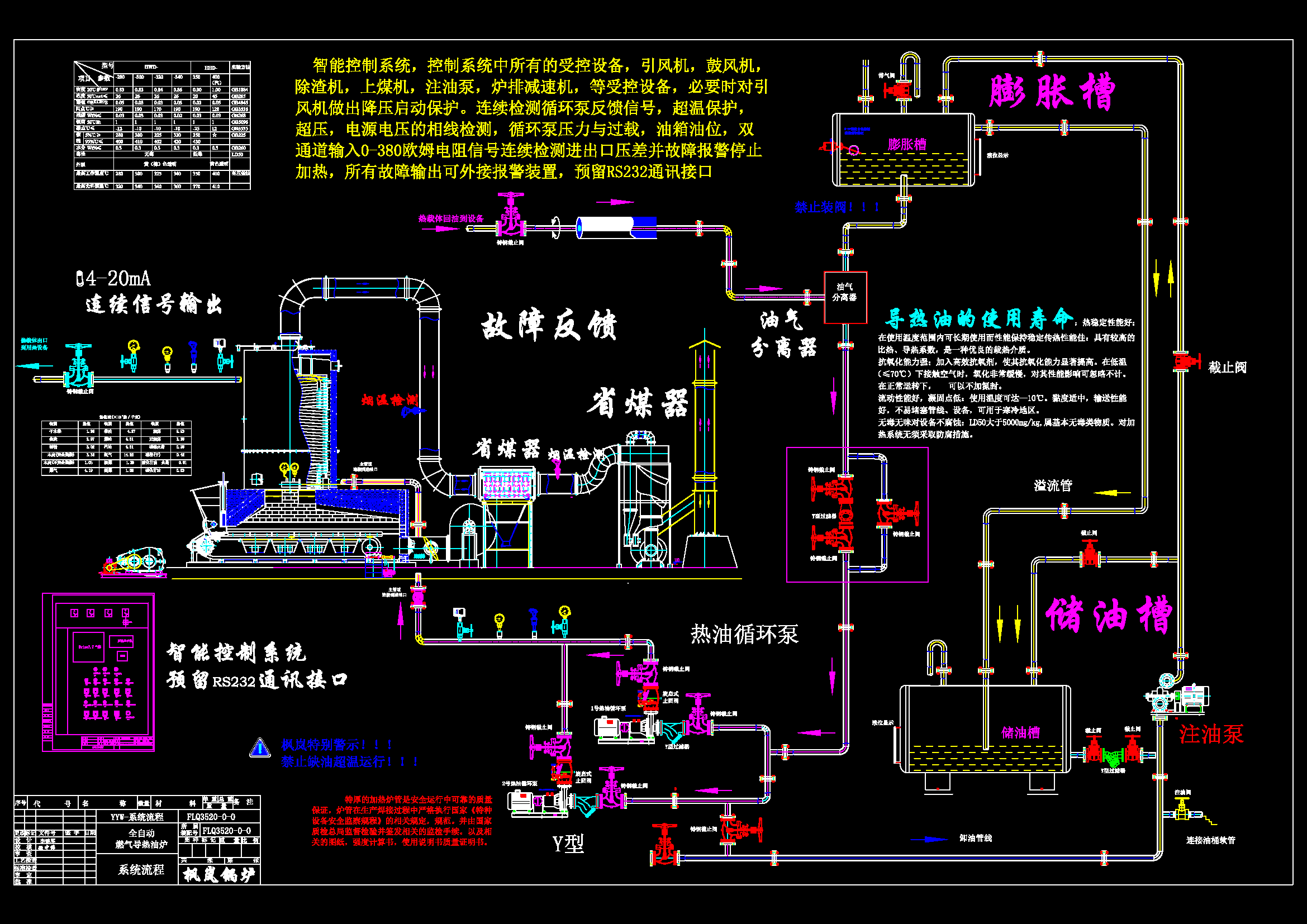

Installation system diagram of horizontal chain coal-fired heat conduction oil furnace

Technical parameters of heat conduction oil furnace

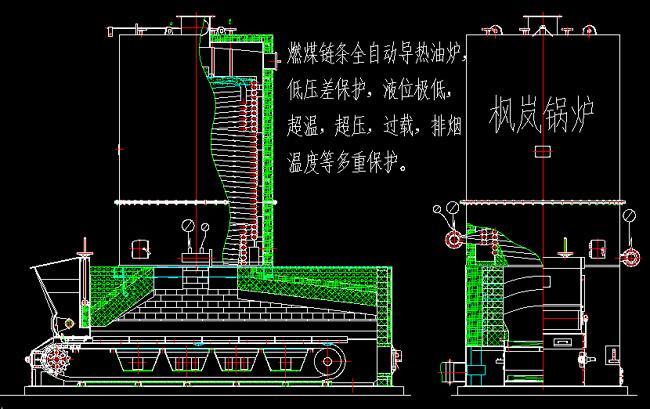

Coal-fired chain heat conduction oil furnace

      Organic heat carrier furnace is a new type of special boiler, also known as heat conduction oil furnace, which has the characteristics of low pressure and high temperature. Under normal pressure, its heating temperature can reach 320°C in liquid phase. For processes that require uniform and stable heating and do not allow direct flame heating, organic heat carriers can be used for heating in various production occasions where the heating temperature is between 150°C and 320°C. It uses coal as fuel and heat-conducting oil as the medium. The circulating oil pump is used to force the heat-conducting oil to circulate in liquid phase. After the heat energy is delivered to the heat-consuming equipment, it returns to the heating furnace for reheating. Not only has low pressure and high temperature, but also can control the working temperature, no need for water treatment equipment, high heat utilization rate of the system, convenient operation and maintenance, it is a safe, efficient and energy-saving heating equipment. Heat-conducting oil boiler Heat-conducting oil furnace Coal-fired heat-conducting oil furnace Horizontal organic heat carrier boiler

Heat conduction oil boiler features:

( 1 ) Low-pressure and high-temperature heat medium is obtained, easy to adjust, uniform heating, and can meet the process temperature.

( 2 ) Liquid-phase circulation heat supply, no heat loss due to condensation and discharge, high thermal efficiency of the heating system.

( 3 ) If the organic heat carrier furnace is in the area, the protection distance is required to be small, and the probability of explosion hazard is small.

( 4 ) The volume change of the organic heat carrier due to heating, heat release and temperature rise and fall should be considered, and technical measures for compensation should be provided in the system.

( 5 ) Strictly control the content of air, moisture and other low volatile substances in the organic heat carrier.

Technical parameters
