YYQ (W) gas heat conduction oil furnace

Heat conduction oil furnace

Gas heat conduction oil furnace

Ultra-low nitrogen gas heat conduction oil furnace

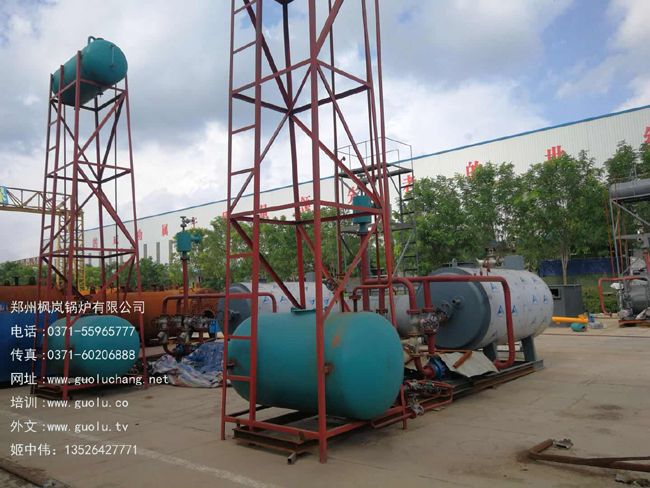

Integrated fuel gas heat conduction oil furnace

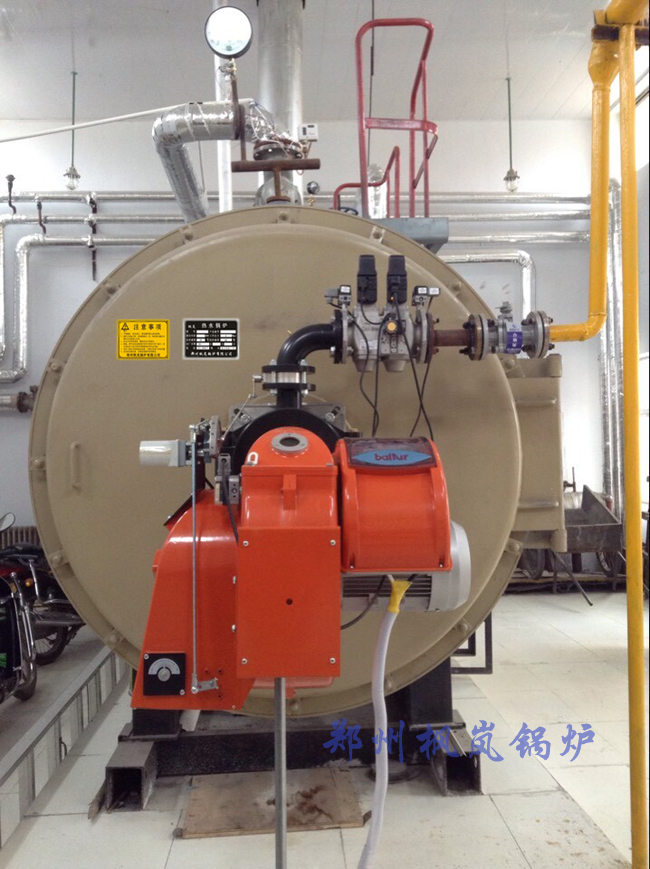

Gas heat conduction oil furnace

Gas heat conduction oil furnace

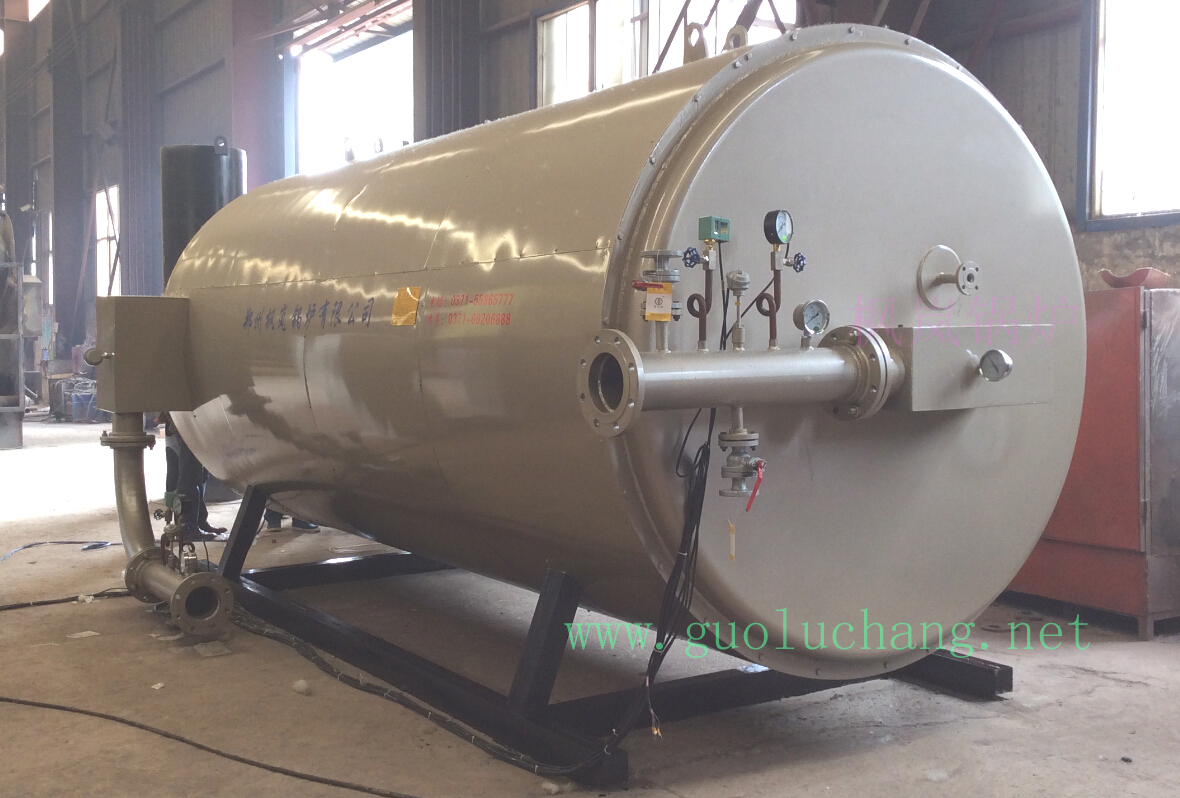

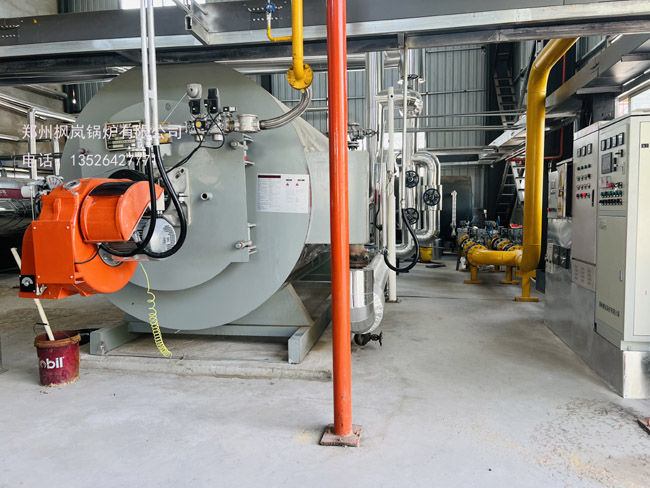

Physical map of gas heat conduction oil furnace

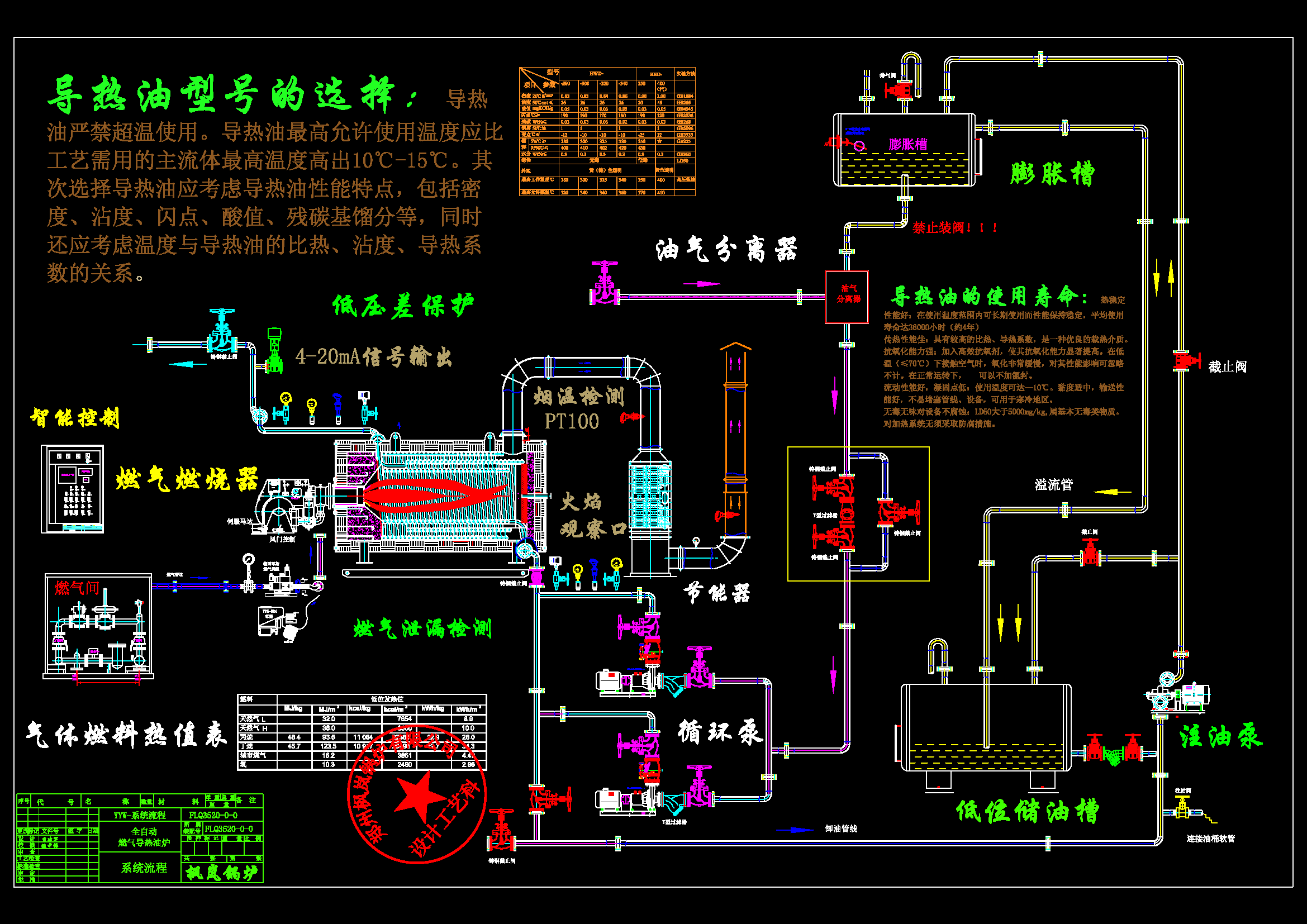

Flow chart of fuel gas heat conduction oil furnace system

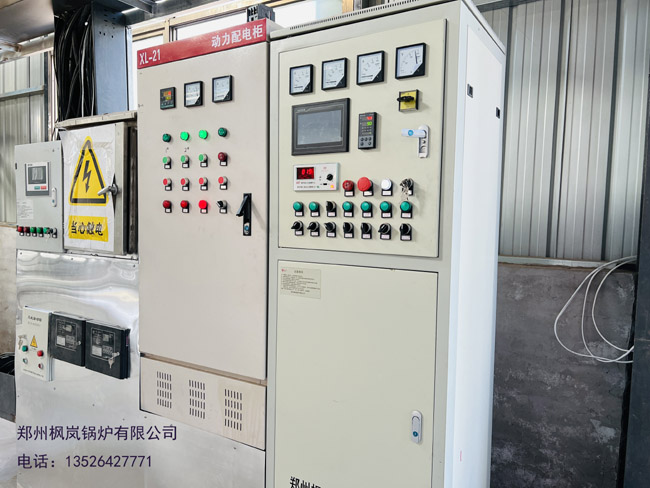

Intelligent control system of fuel gas heat conduction oil furnace

 For relevant model technical parameters, please contact Fenglan reference room: 0371-55965777 60206888

Heavy oil-fired heat-conducting oil furnace

Introduction to the organic heat carrier system: The organic organic carrier heating system is a new type of thermal power equipment that uses organic heat carrier (heat transfer oil) as the heat transfer medium, and its core component is the heat transfer oil furnace. Because the organic heat carrier has many advantages such as good thermal stability, good heat transfer performance, low vapor pressure, and no corrosion to equipment, the organic heat carrier heating system has advantages in industrial applications.
Features of organic heat carrier furnace heating system
High-quality heat source (heat transfer oil furnace): The organic heat carrier heating system can output hot oil up to 350°C for heat users under normal pressure liquid phase. The temperature can be accurately controlled within the range required by the user, and it can provide heat for multiple heat-consuming units at the same time, and can generate hot water, steam, hot air and domestic water through the heat exchanger.
Energy-saving and low operating costs: The organic heat carrier heating system is a liquid-phase closed-circuit cycle, and the output hot oil is used by the heat user (after the heat exchange, all the heat returns to the boiler through the system pipes, avoiding the condensation of the steam boiler and the heat loss of the sewage, It has obvious energy saving effect, so the heat utilization rate is very high, the system does not need water treatment equipment, so the system is relatively simple. The
equipment investment is small: because the organic carrier heating system is simple and has no water treatment equipment, the boiler is under low pressure, etc., so the whole system Less investment.
Safety: Since the system only bears the pump pressure, the organic organic carrier has no explosion hazard, so the organic heat carrier heating system is safer. Environmental protection
: the environmental protection effect of the organic organic carrier heating system is mainly reflected in the less smoke emission and no pollution discharge Pollution and heat pollution, all indicators (flue gas emission concentration and noise) are lower than the national standard requirements. Easy
to use and beautiful appearance: high intelligent control makes boiler operation more convenient and simple, and various boilers have neat and generous appearance.
Organic Heat carrier (heat transfer oil) and organic heat body boiler application range: petroleum industry, chemical industry, oil industry, synthetic chemical fiber industry, textile printing and dyeing industry, plastic rubber industry, paper printing industry, building materials industry, wood industry, food industry, air conditioning industry , electroplating, steel pickling and other surface treatment and various drying industries.

High efficiency of power distribution and automatic control functions: the vertical and horizontal fuel (gas) heat conduction oil furnace can obtain a higher working temperature at a lower operating pressure, and can perform stable heating and temperature regulation, and the thermal efficiency under various levels of load Both can be maintained, the balance of the burner flame volume and the heat exchange surface area makes the outlet flue gas temperature of the exhaust pipe reach the highest temperature, and the insulation layer makes the heat dissipation of the boiler reach a minimum.
Safety: The thickened heat-resistant steel pipe of the boiler is the guarantee of the safety of the boiler. The automatic ignition program, automatic combustion control, automatic flame detection and alarm, over-temperature differential pressure control and alarm make the boiler safer.
Simple installation: all types of boilers are assembled boilers, and only need to connect the system equipment and pipelines during installation, no foundation is required.
Beautiful appearance and convenient use: various appearances make the boiler neat and elegant, and intelligent control makes the operation of the boiler more convenient and simple.
Environmental protection: the flue gas emission and noise of Fenglan heat transfer oil furnace meet the requirements of national standards.
Controller: computer controller integrated control touch screen display has the following automatic control functions:
1. Computer automatic control.
2. Automatic ignition procedure and flame detection.
3. Automatic shutdown program: automatically shut down the burner after get off work, and automatically shut down the circulation pump when the temperature of the heat transfer oil is lower than 70°C.
4. The temperature is automatically controlled. If the temperature is lower than the lower limit of the set temperature, the burner will be started. When the upper limit of the set temperature is reached, the burner will be turned off.
5. Automatic pressure difference control and alarm The pressure difference controller will automatically shut down the burner and give an alarm when the boiler has the following conditions. ① Lack of oil ② There is gas in the vaporization system ③ The system is blocked ④ The valve is closed abnormally.
6. Automatic liquid level control of the expansion tank. Low liquid level starts the oil pump. High liquid level shuts down the oil pump.
7. Circulation pump: burner fault detection and alarm.
8. Fault automatic detection and alarm.
9. This system can be unattended.

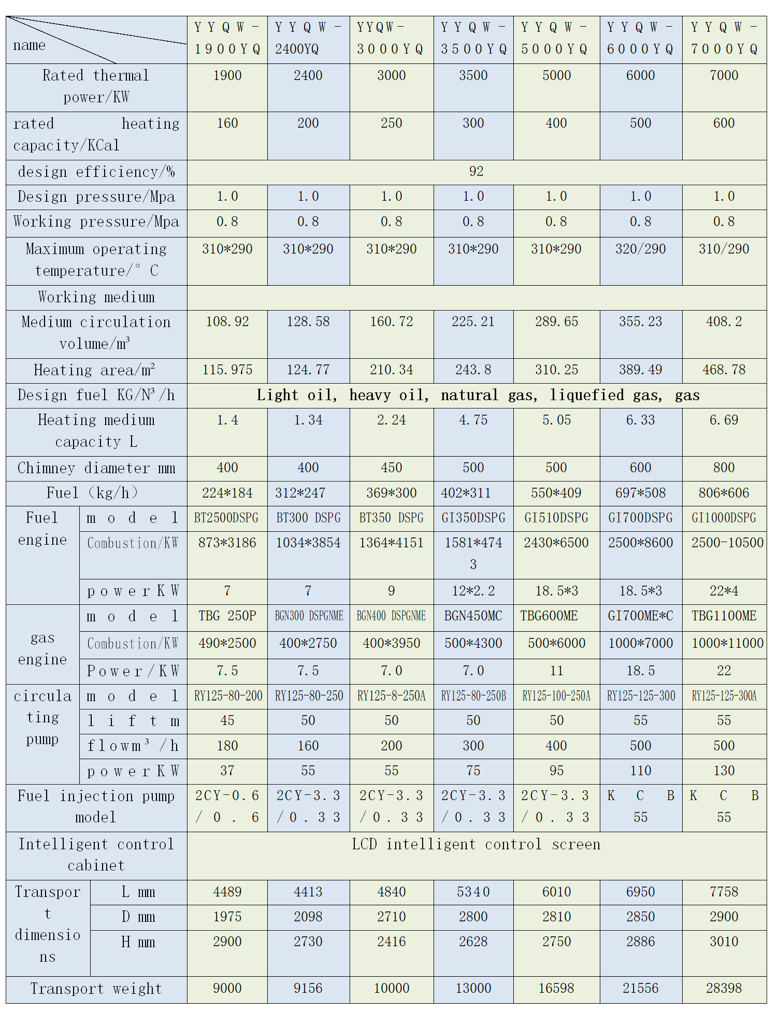

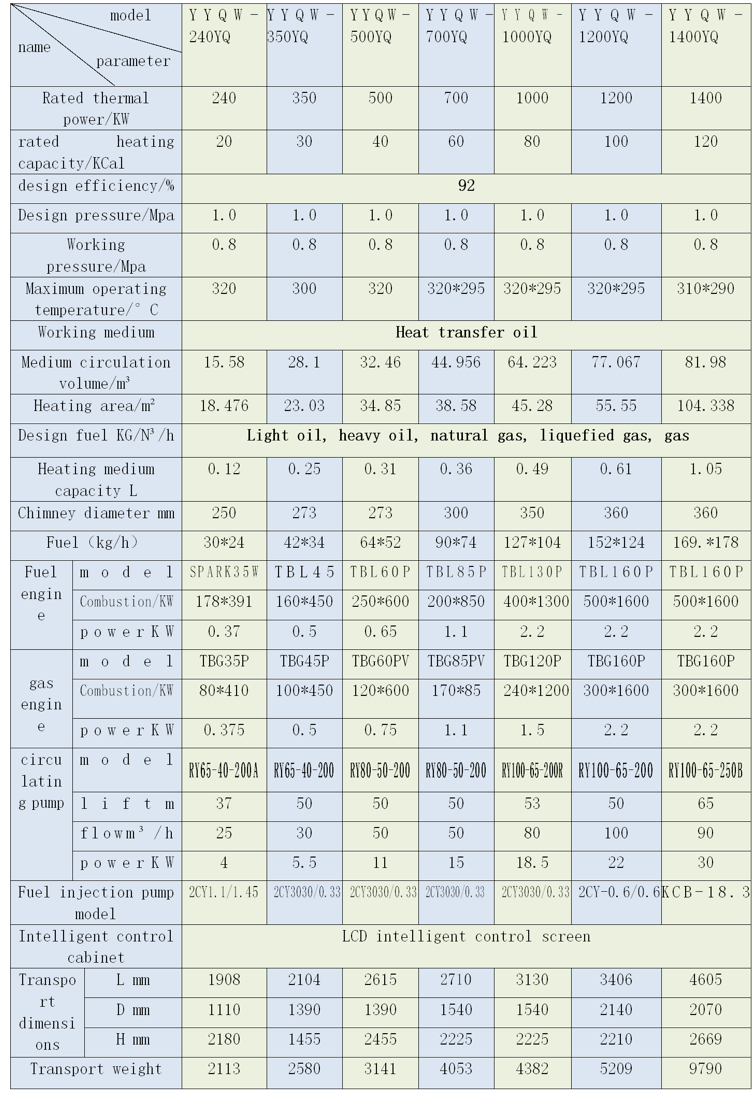

Technical parameters
