Being one-piece condensing steam boiler low nitrogen gas

 Gas steam boiler with high thermal efficiency

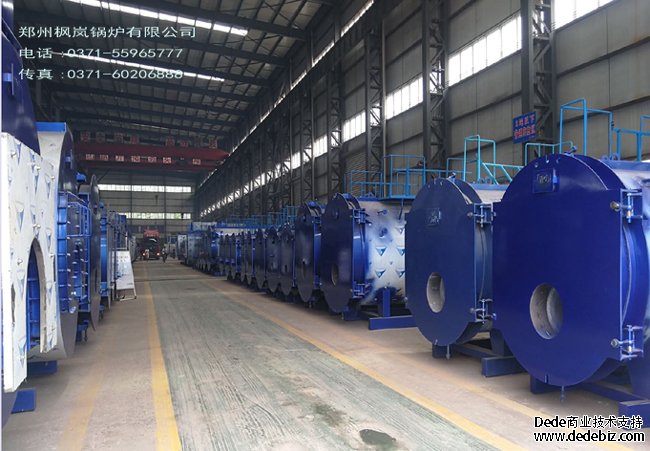

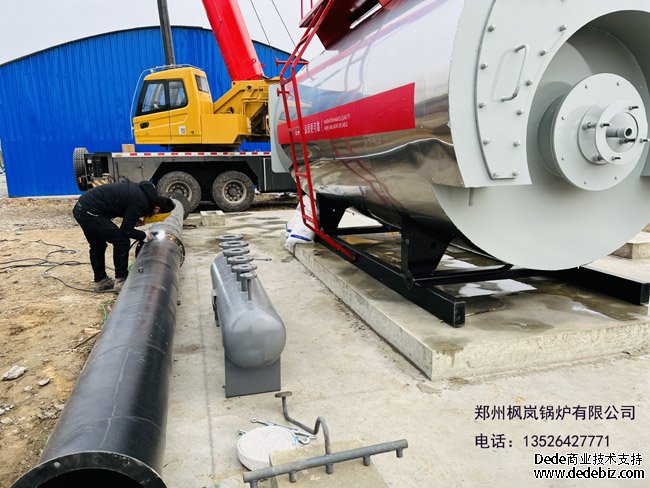

WNS condensing integrated gas steam boiler workshop

WNS series

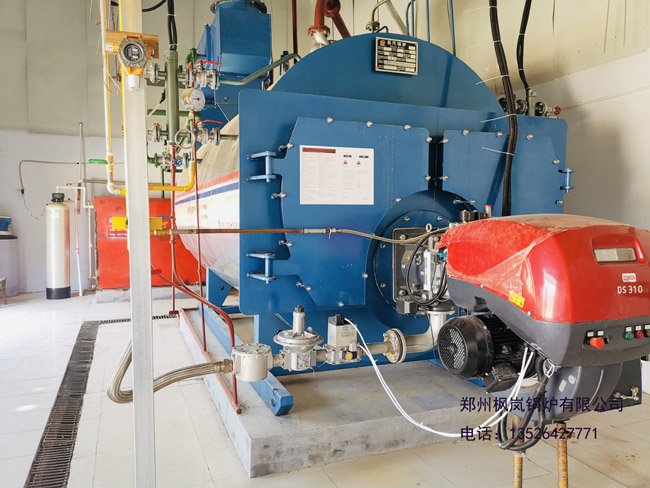

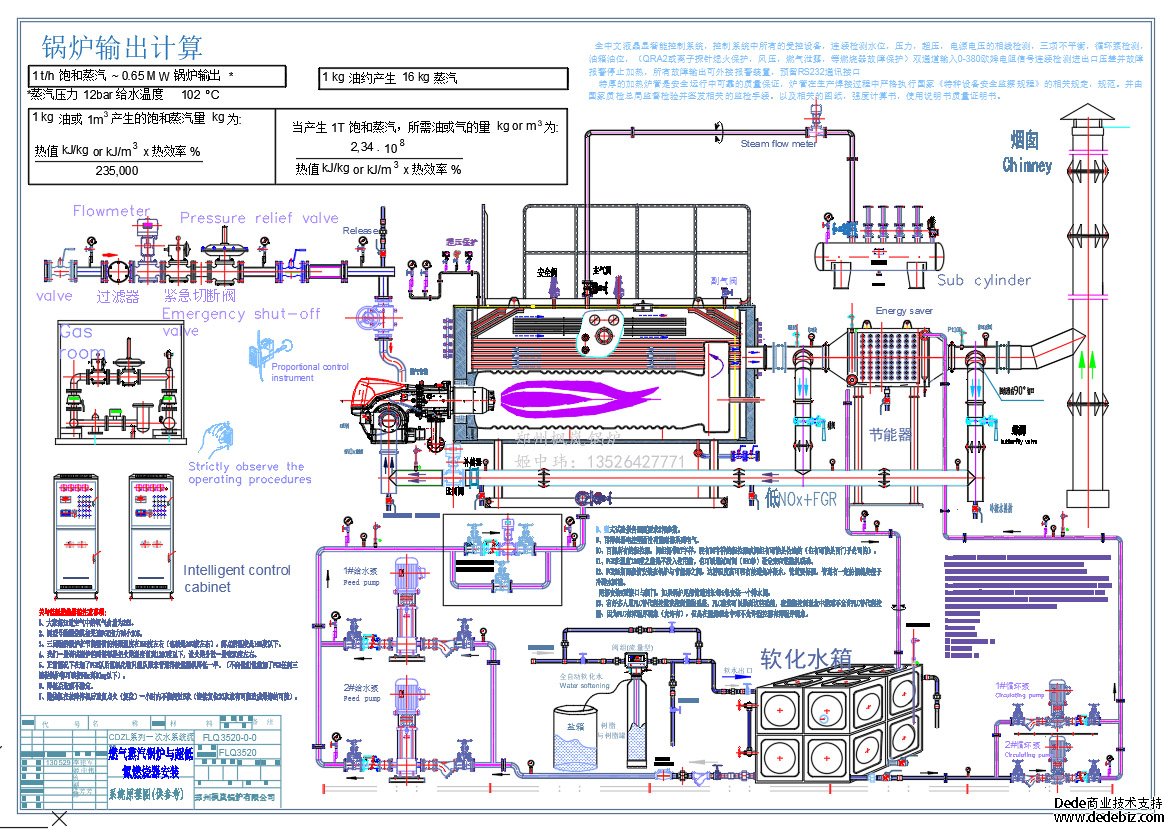

Equipped with an ultra-low nitrogen burner, and adopts flue gas external circulation (FGR) to make the emission of nitrogen oxides below 30mg.

Our factory has launched an integrated low-nitrogen condensing steam boiler. The water temperature of the boiler water can reach 85 degrees after passing through the economizer and the condenser, and the rehearsal temperature of the exhaust gas is about 65 degrees, which significantly improves the thermal efficiency.

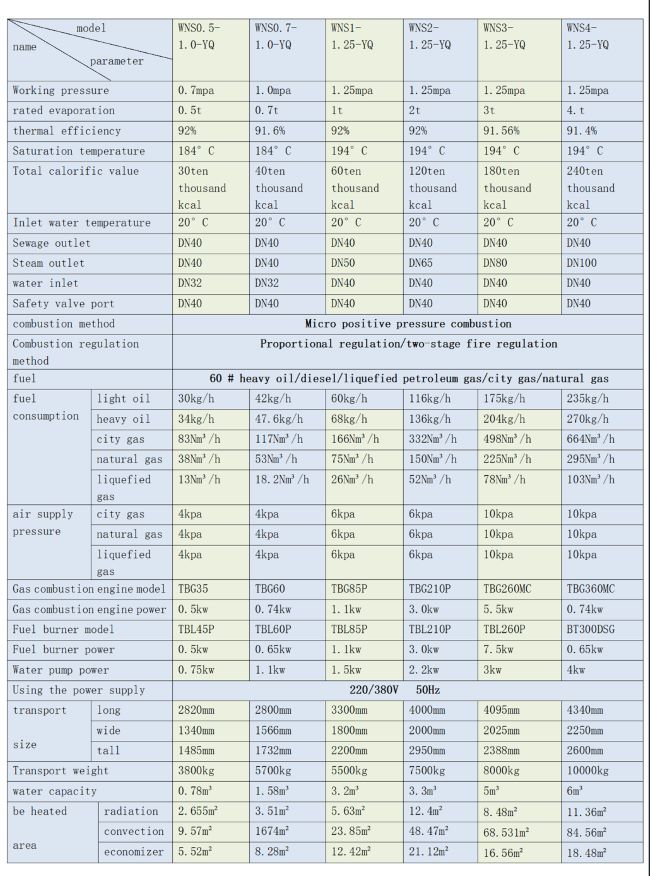

One, 2 tons of integrated condensing low nitrogen 30mg technical parameters

# #1.1 Rated evaporation: 2.0T/h    √

# #1.2 Type: Horizontal   √

# #1.3 Internal structure: three return trips,  √

1.4 Rated working pressure (Mpa): 1.0 Mpa 1.25Mpa 1.6Mpa 2.5Mpa

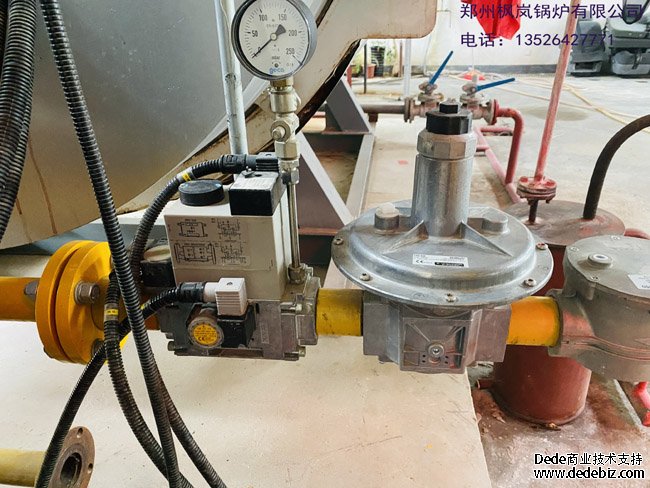

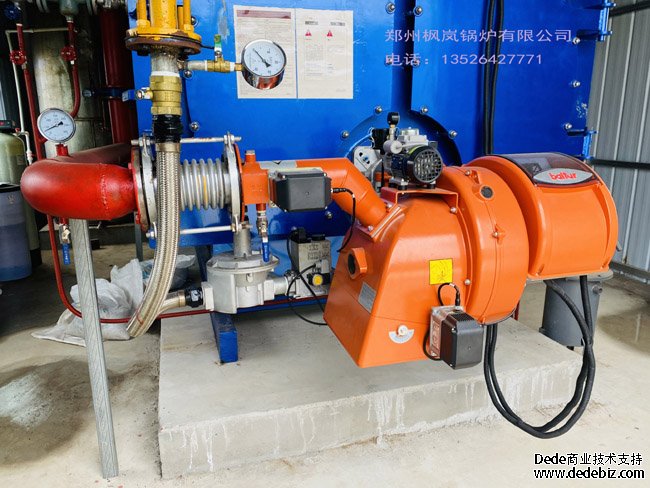

# #1.5 Burner: choose imported brands with reference to or relative to Ecco Flange, Olin, Norte Fibo, etc.; burner model and boiler structural characteristics

Matching, the power of the burner matches the rated thermal power of the boiler, and the micro positive pressure combustion supports the flue gas external circulation technology to meet the low nitrogen standard.

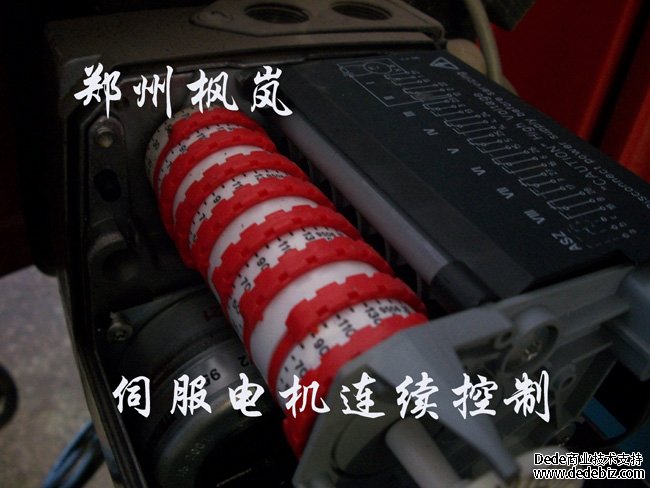

1.6 Combustion control method: double-stage fire adjustment or electronic ratio adjustment√

1.7 Fuel used: natural gas

1.8 Calorific value of fuel: natural gas: 8600kcal/m³

1.9 Rated fuel consumption: 150m³/h

 1.10 Load adjustment range (%): 20-100 √

# #1.11 Rated load thermal efficiency (%): 100.21%

# #1.12 Exhaust gas temperature (°C): 62°C

1.13 Air inlet pipe diameter (mm): DN65

1.14 Air inlet method: direct outer wire or flange butt joint

1.15 Exhaust diameter: 325/400mm

1.16 Burner ignition method: electronic ignition√

1.17 Operating noise (dB(A)): ≤85√

1.18 Power supply: three-phase five-wire 380v, 50HZ √

1.19 Controller interface: ≥10 inch Chinese color touch screen√

1.20 Control system: PLC control √

1.21 Overall dimensions of the unit: 4246×2128×2900mm

1.22 Unit weight (t): 8.9T (single body)

 24 Unit service life: 15 years,

2. Safety requirements;

2.1 With extremely low water level detection function; √

2.2 With water level, temperature, pressure abnormality protection device; √

2.3 With flameout protection and power failure self-locking protection; √

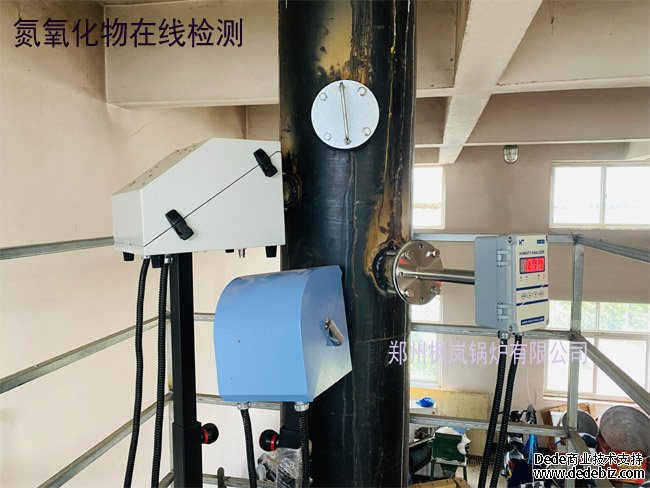

2.4 Requirements: Comply with national environmental protection requirements. Please give specific requirements√

2.5 The body has a discharge device to prevent gas deflagration.

2.6 Other requirements: The economizer is made of carbon steel as a whole. The boiler outsourcing is made of stainless steel. √

# 2.7 The pressure should be controlled by pressure transmitter components, the pressure transmitter refers to or is equivalent to the imported brand Danfoss; √

2.8 Choose domestic brands for matching valves with the system; Gaoshan or Yuming√

2.9 Other components that require 3C certification must provide 3C certification√

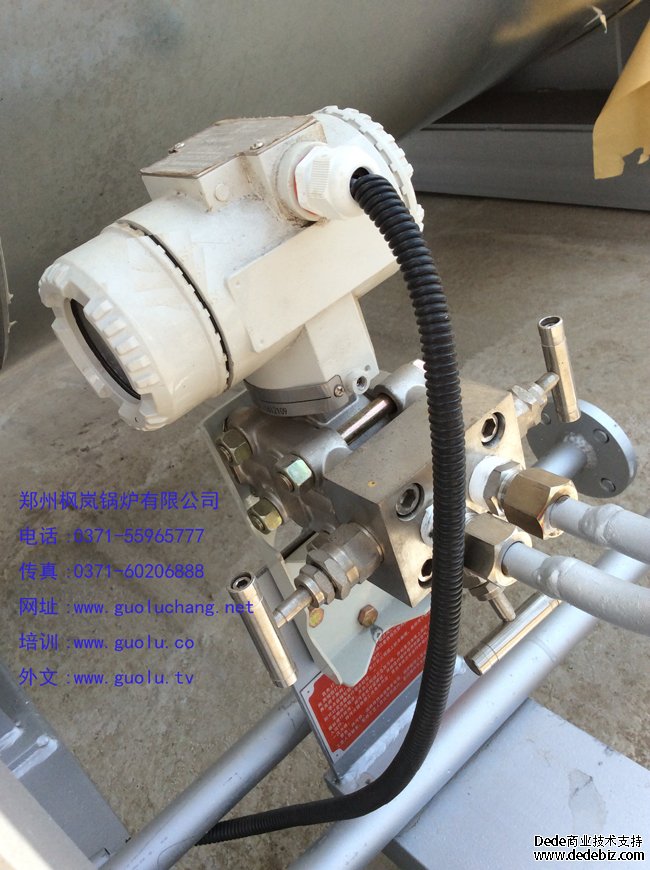

2.10 Boiler water supply mode: continuous water supply. √

3. Water supply pump

# 3.1 The feed water pump adopts the reference or relative to the imported brand of Niconi or Grundfos, √

4. Control system

4.1 Control system and control box: boiler standard configuration; √

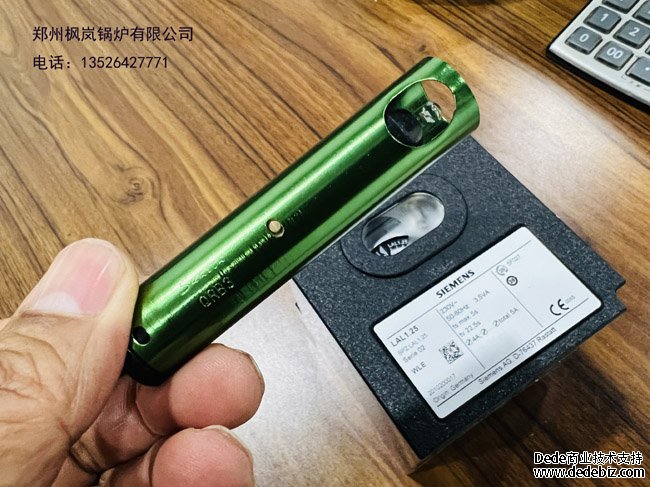

4.2 The main electrical components must adopt imported brands with stable quality and performance (refer to or be equivalent to Siemens, ABB,

Danfoss); √

4.3 PLC full intelligent touch screen control system; boiler standard configuration (including but not limited to the following)

4.3.1 PLC full intelligent control system: graphics and Chinese dynamic display function, which can dynamically display the status of burners, water pumps, etc. in real time

Operating status and flame changing state; √

4.3.2 Compatible with the current office automation network (WINDOWS9X, WINDOWSNT, NOVELL, etc.),

The factory automation control network is interconnected to realize the remote monitoring function of the boiler operation status; √

4.3.3 Interlock protection and alarm functions such as burner ignition failure and fuel leakage; √

4.3.4 Burner flame automatic adjustment and flame automatic detection function; √

4.3.5 The boiler has high and low voltage protection. When the power supply voltage exceeds the normal range, it will automatically cut off the boiler power supply and report

Police; √

4.3.6 Boiler exhaust gas temperature display, control and over-high protection function; √

4.3.7 Boiler operation and setting password protection function; √

4.3.8 There should be an emergency stop switch device outside the boiler control cabinet; √

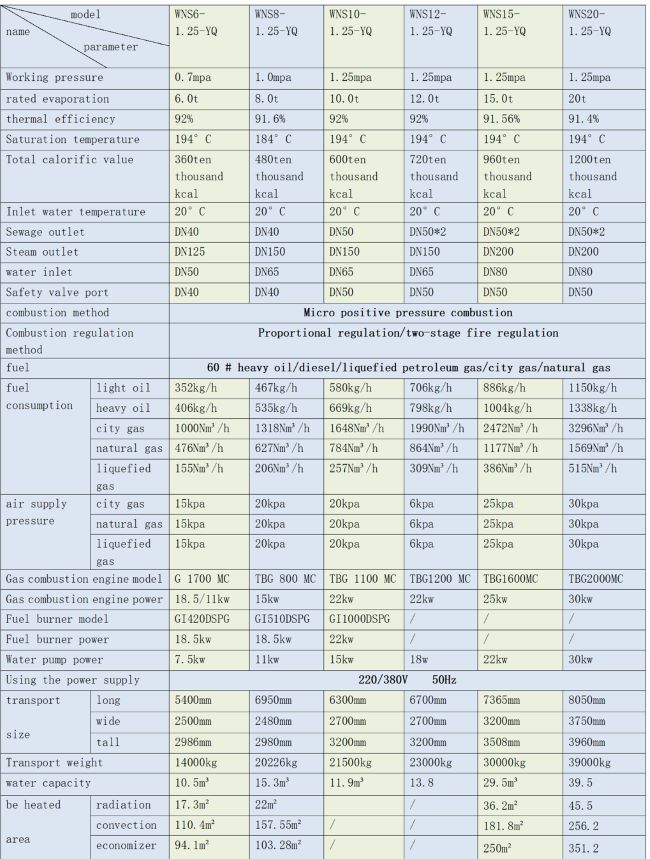

Technical parameters
