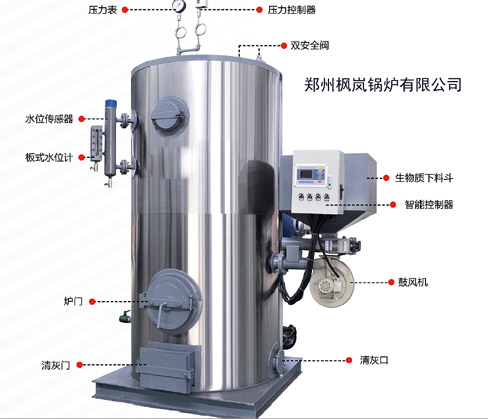

Biomass steam generator

The main body furnace is a three-pass fire tube structure, which has a longer service life and lower maintenance costs than ordinary water tube structure furnaces.

Equipped with a fully automatic burner, with a high degree of automation, automatic purging according to the controller's instructions, electronic automatic ignition, automatic combustion, automatic proportional adjustment of air oil (gas), safe and stable performance, and good combustion effect. And there is a flameout protection device to ensure safe operation.

3. Equipped with microcomputer LCD control system, one-button operation, install water and electricity in place, press the switch key, the generator will enter the fully automatic operation state, which is safe and convenient.

4. The product is equipped with a pressure controller and a safety valve, with multiple protections such as overpressure, low water level and overheating protection to ensure product quality and use safety.

5. The steam production and steam saturation have been strictly tested and both meet the standard requirements.

6. The product is delivered as a complete machine, and the water pump, valve and check valve have been configured. It only needs to be connected to the power supply, steam outlet pipe, water inlet pipe and sewage pipe, which saves installation costs and a lot of installation materials.

7. Scope of application: ironing and washing industry: dry cleaning machine, dryer, washing machine, dehydrator, ironing machine, iron and other equipment and other supporting use. Electroplating surface treatment industry: heating and constant temperature of bath liquid in electroplating tank, washing machine and cleaning pool. Food processing industry: tofu machine, rice noodle machine, Liangpi machine, steam box, sterilizing tank, packaging machine, coating equipment, sealing machine and other equipment supporting use, hotels, enterprises and institutions canteens and various service stations for disinfection, steaming vegetables, Serve steamed rice with boiling water.

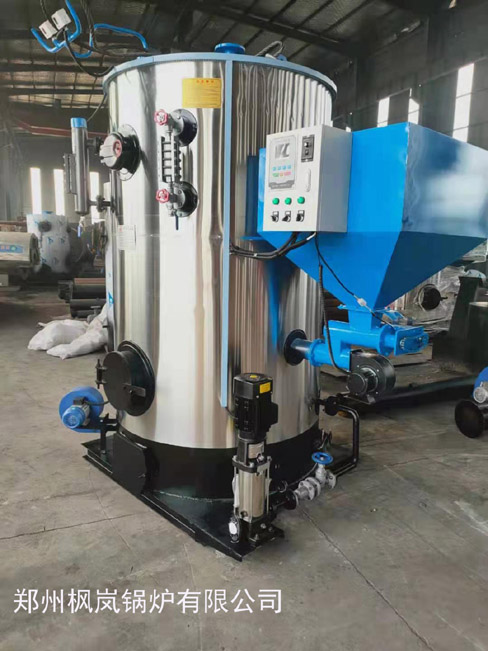

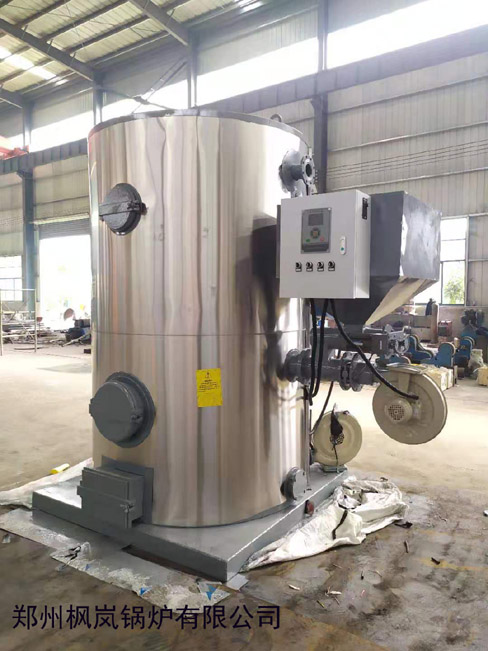

The biomass steam generator uses biomass wood pellets as fuel, generates a heat source through semi-gasification combustion, heats the water in the inner tank of the biomass steam generator, and continuously generates steam. A small biomass steam boiler.

Biomass steam generators have low operating costs, up-to-standard emissions, and a high degree of automation. They are the best choice for small and medium-sized enterprises to save energy and reduce emissions .

Pot inspection -free : design water volume < 30L does not require annual inspection, eliminating the complicated annual inspection procedures for approval and registration;

Low cost : its operating cost is one-sixth of that of an electric boiler and one-third of that of an oil-fired boiler;

Environmental protection standards: semi-gasification combustion method, high thermal efficiency, meet the requirements of the specified emission standards;

Safety and peace of mind: equipped with pressure controller, safety valve, with multiple protections such as overpressure, low water level and overheating protection, the boiler operates safely;

Easy installation: the valvesintegrated , and only needs to be connected to the power supply, and the water inlet pipe and sewage pipe can be used;

Energy saving and emission reduction: Standard two-pass flue gas economizer and water bath dust collector make full use of exhaust heat and reduce dust emissions;

Simple operation: one-button operation, just install the water and electricity in place, press the switch key, and the boiler will enter the fully automatic operation state;

Automatic intelligence: equipped with microcomputer automatic movement control system, automatic feeding, automatic ignition, automatic water replenishment, automatic shutdown and sound and light alarm when abnormal operation occurs, convenient maintenance according to the fault code;

9. Worry-free maintenance: the failure rate is extremely low, and there is only a small amount of powdery ash residue after complete combustion, which is easy to handle.

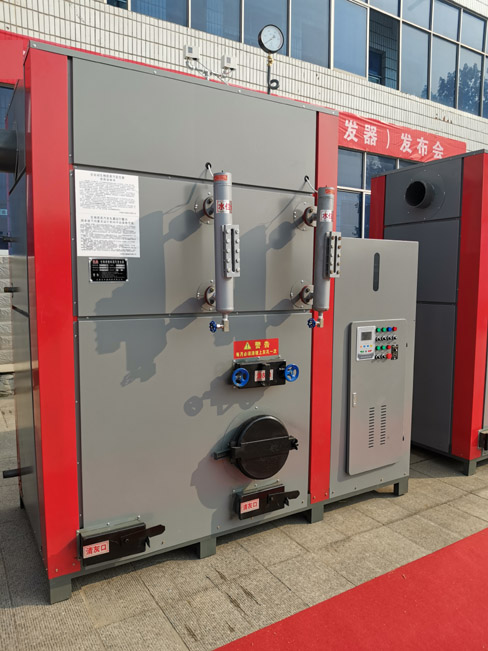

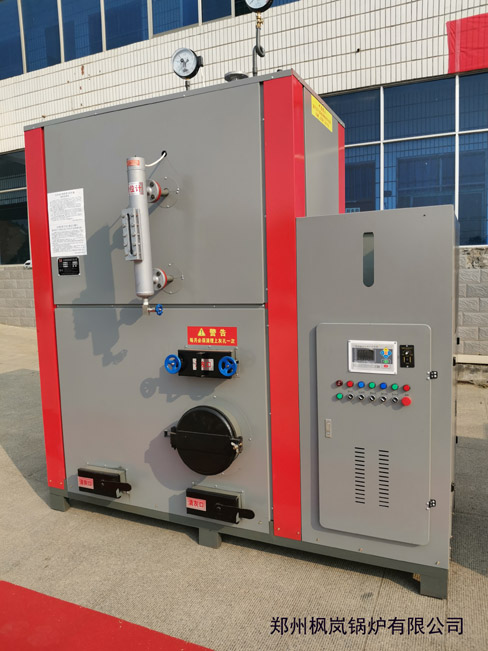

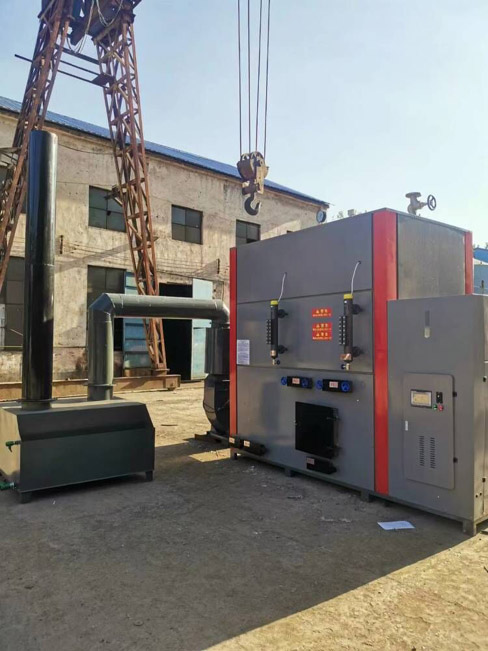

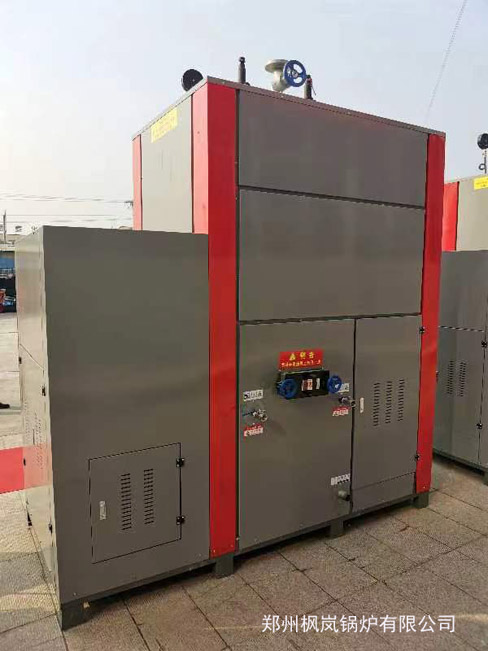

Biomass Boiler Steam Generator

1. Fully automatic control, which can be set to manual or automatic mode; automatic control of pressure and water level,

2. Use biomass fuel for heating and combustion to fully reduce environmental pollution.

3. Built-in steam-water separation design, high-quality steam.

4. Use straw biomass pellet fuel, which is convenient to use.

5. The whole machine is manufactured in strict accordance with the regulations, so that users can use assured products. With multiple protection functions, water shortage protection, water shortage protection, overpressure protection, etc.

6. It can be controlled according to the actual usage of steam to reduce the operation of the boiler so as to make the operation of the boiler stable.

7. The blast combustion is sufficient, the fuel consumption is reduced, and the noise is low .

8. It is not affected by the site and occupies a small area .

Technical parameters of small oil-fired gas inspection-free boiler (through-flow gas steam generator)

Small oil-fired gas inspection-free boiler (through-flow gas steam generator)

LWS series vertical fuel oil ( gas ) boiler

This product is a very representative oil ( gas ) boiler, ( it can be divided into two types: vertical and horizontal ) LWS stands for vertical shell boiler.

1. The boiler adopts a vertical tubeless structure to avoid the failure of the tube boiler and the furnace body to cause water pressure to make the furnace body unable to operate normally . The four-return structure mainly relies on the high-temperature radiation heat transfer of the furnace and the convective heat transfer of the strong swirling airflow to heat the furnace. The body is sleeve type, which effectively increases the heat transfer from the flue gas to the furnace water, and improves the thermal efficiency. The tubeless design prevents the product from being burned due to fouling, and the heat is evenly transmitted to the tube wall and heat transfer fins, avoiding stress and prolonging the service life.

2. The whole plate edge butt welding structure is adopted to avoid the possibility of fatigue cracks in the fillet welds , and the high-efficiency heat transfer device is used inside to enhance the heat transfer effect , reduce the heat loss of the boiler exhaust , and have high thermal efficiency .

3. The required steam can be generated in a short time , and the pressure is constant when working . The steam volume is sufficient , and the built-in steam-water separator is used to make the steam quality meet and exceed the national standard .

4. The boiler adopts full computer control , which is easy to operate and has high reliability . It has low water level automatic water intake , ultra-low water level alarm and interlocking , which can effectively ensure the safe operation of the boiler . The operation panel of various faults can be clearly responded , and the maintenance is more targeted .

LSS series automatic vertical fuel oil ( gas ) boiler (steam generator)

This type of furnace has been widely used abroad. The furnace adopts a vertical water pipe through-flow type and a flue gas three-pass structure. The burner adopts the top-mounted type, and there are two rings of water pipes welded between the upper and lower rectangular headers. After the fuel is burned in the furnace, it enters between the two rings of water pipes through the side outlet for horizontal flushing and then to the chimney, which reduces the exhaust gas temperature and makes the steam boost quickly. , The speed of steam production is fast, which reduces the heat loss when the boiler is turned on, preheated and shut down, and greatly improves the thermal efficiency.

The product has relatively high requirements for water quality, as well as high requirements for automatic control and auxiliary facilities.

Technical parameters
