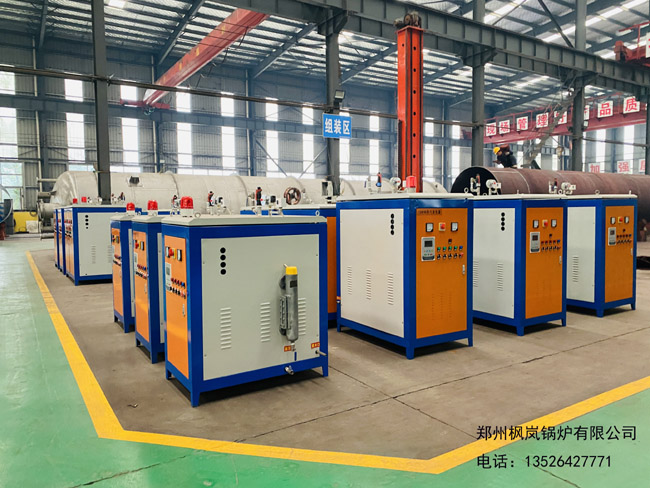

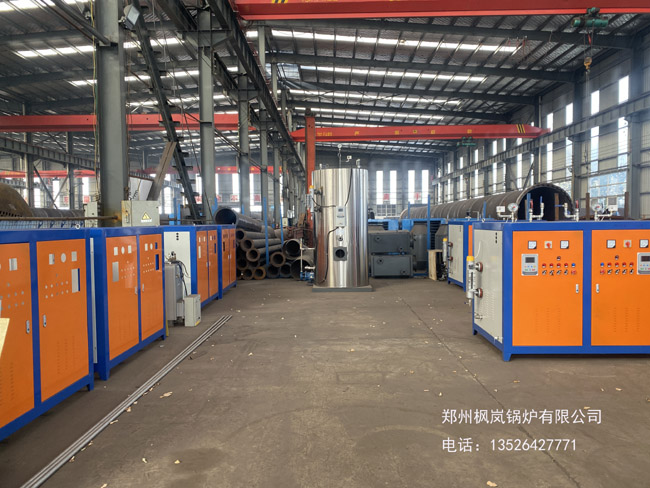

electric steam generator

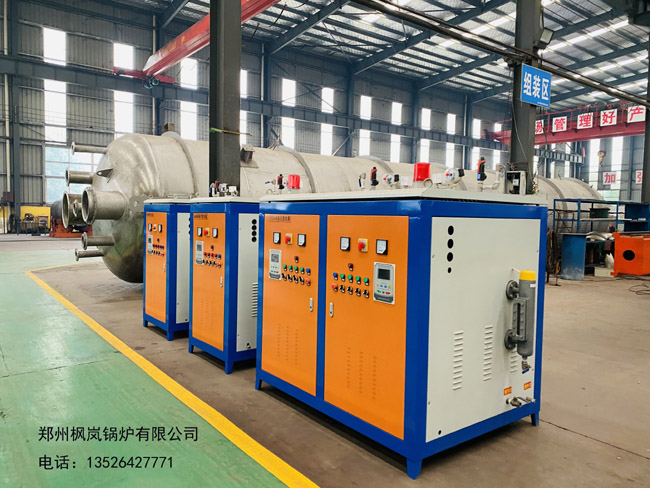

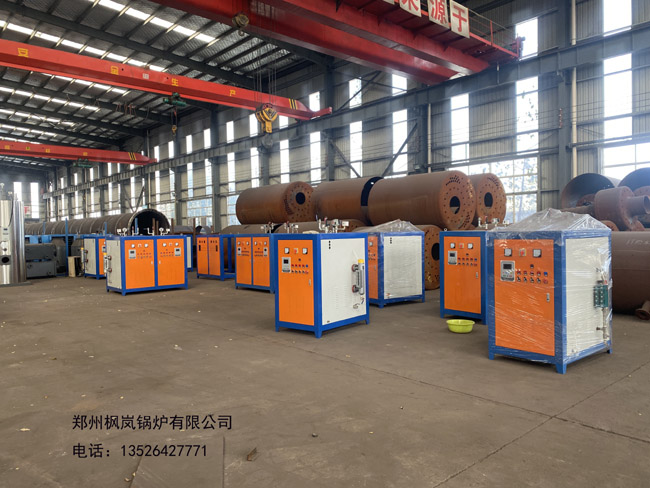

electric steam generator

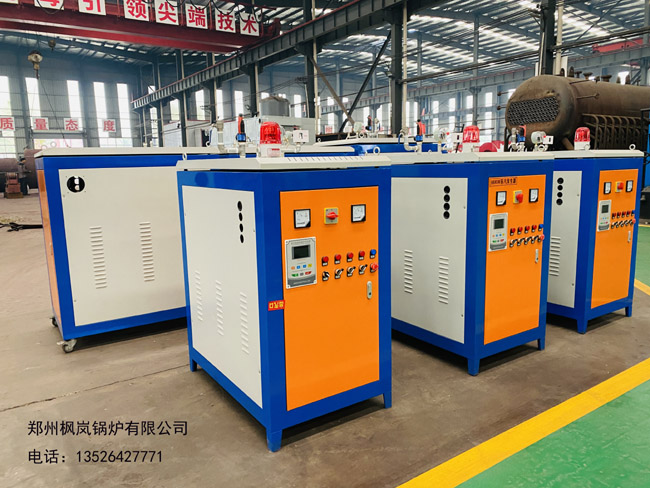

electric steam generator

electric steam generator

Electric steam generator, (a boiler that does not need to go through the formalities with the Technical Supervision Bureau)

Electric steam generator (a boiler that does not need to go through the formalities with the Technical Supervision Bureau)

Technical parameters of steam generators for small electric steam boilers without certificates

Recommend LDR electric heating boiler (steam generator) to you

Product Structure Features

 LD electric heater is a steam generator that belongs to the smokeless boiler , an environmentally friendly product with no noise and no pollution. LDR series electric steam generator is a mobile steam furnace that uses tubular electric heating tubes to directly heat water and continuously generate steam pressure. The furnace is made of boiler steel, and the electric heating tube is connected to the furnace body with a flange, which is convenient for loading and unloading, and is conducive to replacement, repair and maintenance. The furnace body and the control cabinet are separated. All electrical components have CE and CCC certification marks to ensure the reliability and service life of the product. ( The thermal efficiency reaches 98%). The heating is safe, reliable and stable. It has safety protection systems such as automatic water replenishment, water shortage, overpressure, automatic power off and alarm, and leakage protection.

  0371-55965777 60206888

http://www.guoluchang.net

In addition to the heating capacity, this product also incorporates the modern concept of energy saving, environmental protection and no noise.

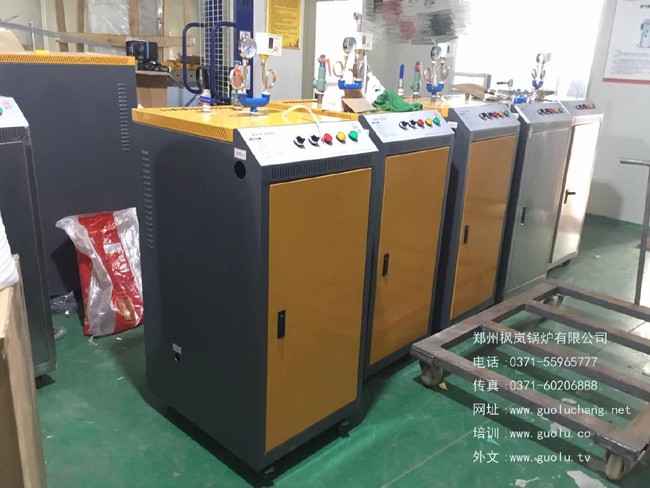

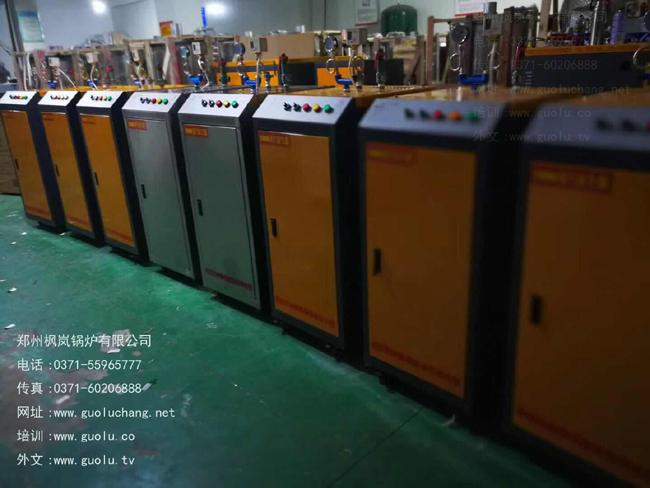

Small integrated (exempt from inspection) electric steam boiler

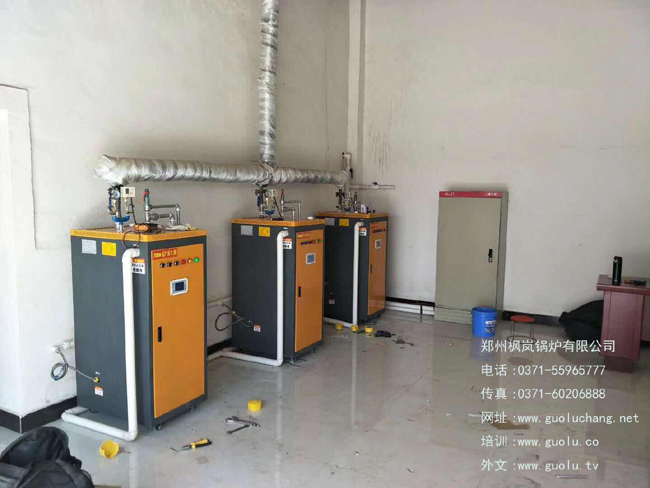

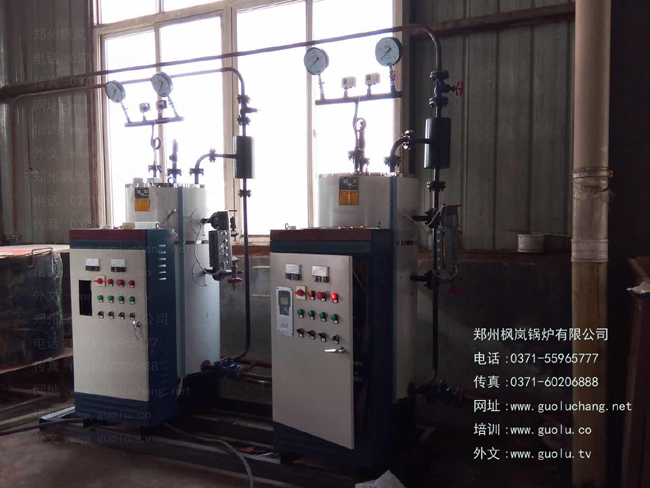

Small integrated (exempt from inspection) electric steam boiler

Small integrated (exempt from inspection) electric steam boiler

Small integrated (exempt from inspection) electric steam boiler

1. Electric energy is used as energy, no noise, no pollution, no pollution, it is a green product.

2. For small boilers below 30Kg , the electric control of the furnace body is integrated , which is convenient for installation and connection; for large boilers ( above 300 kg ), the furnace body and electric control are separated, and the electric control part is not affected by the high temperature of the furnace body, ensuring the stability of the electric control devices run.

3. Using advanced technology and production process, the thermal efficiency reaches 98% .

4. It adopts advanced computerized boiler controller, which has the advantages of reliable performance, high degree of automation and convenient use.

5. Use high-quality electrical components to ensure the service life of the product.

Electric heating steam generator

The electric heating steam generator is a micro-boiler that automatically and continuously generates higher pressure and steam, using electric energy as the energy source, without noise and pollution. Using high-quality heating tubes, the surface heat load is low, the thermal efficiency is high, and it is convenient for installation and maintenance. It can provide the necessary dry steam for industrial steam irons and steam ironing presses.

According to the "Pot Regulations", the water capacity is less than 30Kg, or the use pressure is less than 0.09MPa , without installation notification and supervision and inspection .

How Electric Steam Generators Work

The electric steam generator is mainly composed of water supply system, automatic control system, furnace and heating system and safety protection system. Its basic working principle is: through a set of automatic control devices, it is ensured that the liquid controller or high, medium and low electrode probe feedback controls the opening and closing of the water pump, the length of water supply, and the heating time of the furnace during operation; The set maximum steam pressure is continuously output with the steam, and the water level of the furnace keeps dropping. When it is at a low water level (mechanical type) or a medium water level (electrical type), the water pump will automatically replenish water, and when it reaches a high water level, the water pump will stop replenishing water; and At the same time, the electric heating tube in the furnace continues to heat, and steam is continuously generated. The pointer pressure gauge on the panel or on the upper part of the top immediately displays the steam pressure value, and the whole process can be automatically displayed by the indicator light.

The function of electric steam generator

1. Abnormal protection function of electric steam generator power supply: the boiler stops running immediately.

2. Electric steam generator leakage protection function: After the control system detects the electric heating element leakage, it will automatically cut off the power supply.

3. Water shortage protection of the electric steam generator: When the boiler is short of water, cut off the control circuit of the heating tube in time to prevent the heating tube from being damaged by dry burning, and at the same time, the controller sends out a water shortage alarm indication.

4. Abnormal protection function of electric steam generator power supply: the boiler stops running immediately.

Features of Electric Steam Generators

 1. The electric steam generator adopts advanced electric heating tube, which has low surface load and long service life.

2. The electric steam generator boiler starts and stops quickly, has a wide range of operating load adjustment, fast adjustment speed, and simple operation.

3. The heating element of the electric steam generator automatically adjusts the input groups of the heating tubes according to the temperature difference and the change of the load, and can automatically switch the input sequence, which not only saves energy consumption, but also balances the running time of each group of heating tubes, thereby evenly heating the tubes lifespan.

4. The heating element of the electric steam generator can also be switched on or off manually, which is convenient for users to flexibly adjust the heating value of the boiler.

 5. The electric steam generator adopts advanced computerized boiler controller, which has the advantages of reliable performance, high degree of automation and convenient use.

 6. The accessories used by the electric steam generator are all high-quality products at home and abroad, and have been tested by the furnace test to ensure the long-term normal operation of the boiler.

 7. The high-power electric steam generator adopts the separation method of the furnace body and the control cabinet, which avoids the influence of the electrical components on the use due to heating

Uses of Electric Steam Generators

Electric steam generators provide production steam for food cooking, printing and dyeing, pharmaceuticals, clothing ironing, road maintenance, medical institutions provide disinfection steam, and provide domestic hot water for other enterprises, hotels, and bathrooms through water tank heating.

Washing and ironing industry: Dry cleaning machines, dryers, washing machines, dehydrators, ironing machines, irons, and other equipment are used together.

Food machinery industry: supporting use of tofu machines, steamers, sterilization tanks, packaging machines, coating equipment, sealing machines, and other equipment

Biochemical industry: supporting use of fermentation tanks, reaction kettles, jacketed pots, mixers, emulsifiers and other equipment

Other industries: (oil fields, automobiles) steam cleaning industry, (hotels, dormitories, schools, mixing stations) hot water supply, (bridges, railways) concrete maintenance, (leisure and beauty clubs) sauna bathing, heat exchange equipment, etc.

2. Advantages

1. Security

① Leakage protection: When the boiler leaks electricity, the leakage circuit breaker will cut off the power in time to ensure personal safety.

②Water shortage protection: When the boiler is short of water, cut off the control circuit of the heating tube in time to prevent the heating tube from being damaged by dry burning, and at the same time, the controller sends out a water shortage alarm indication.

③Grounding protection: When the boiler casing is charged, the leakage current is introduced into the earth through the grounding wire, so as to ensure personal safety. Usually the protective grounding wire should be well connected with the earth, and the angle iron or steel pipe buried deep in the ground is often used as the grounding body, and the grounding resistance should not be greater than 4 Ω.

④Steam overpressure protection: When the steam pressure of the boiler exceeds the set upper limit pressure, the safety valve starts to release steam to reduce the pressure.

⑤ Over-current protection: When the boiler is overloaded (overvoltage), the leakage circuit breaker will automatically disconnect.

⑥ Power supply protection : Reliable power-off protection after over-voltage, under-voltage, and out-of-phase fault conditions are detected by advanced electronic circuits.

2. Convenience

① After the power supply is introduced into the electric control box, the boiler will enter (or leave) the fully automatic operation state with one key operation.

②The amount of water in the boiler decreases, and the control system automatically replenishes water from the water tank to the boiler through the water supply pump.

3. Rationality

In order to use electric energy reasonably and effectively, the heating power is specially divided into several sections, and the controller automatically circulates (cuts off). After the user determines the heating power according to actual needs, he only needs to close the corresponding leakage circuit breaker (or press the corresponding switching switch). The segmental cycle switching of the heating tube reduces the impact of the boiler on the power grid during operation.

4. Reliability

① The bottom of the boiler body is argon arc welding, the cover is manually welded, and it has passed the strict inspection of X -ray flaw detection.

② The steel used in the boiler is selected strictly according to the manufacturing standards.

③ The accessories used by the boiler are all high-quality products at home and abroad, and have been tested by the furnace test to ensure the long-term normal operation of the boiler.

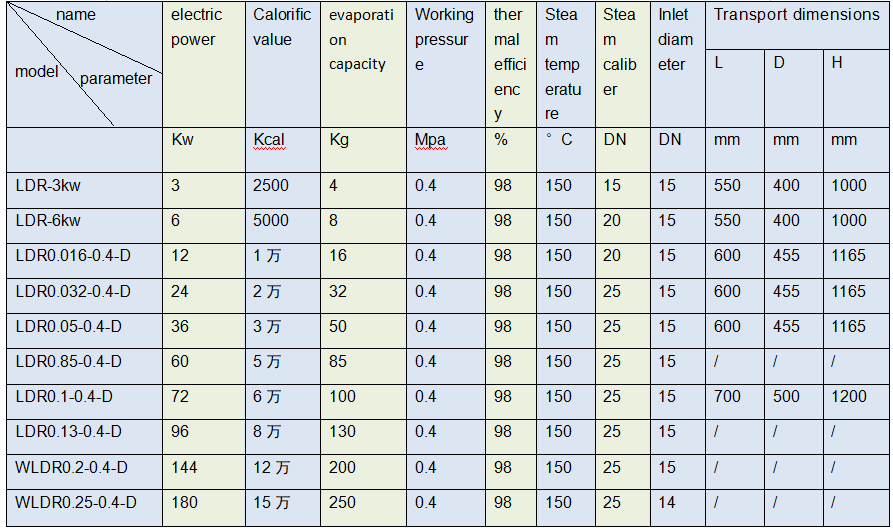

Technical parameters
