FGZSS autoclaved kettle (FGZCS)

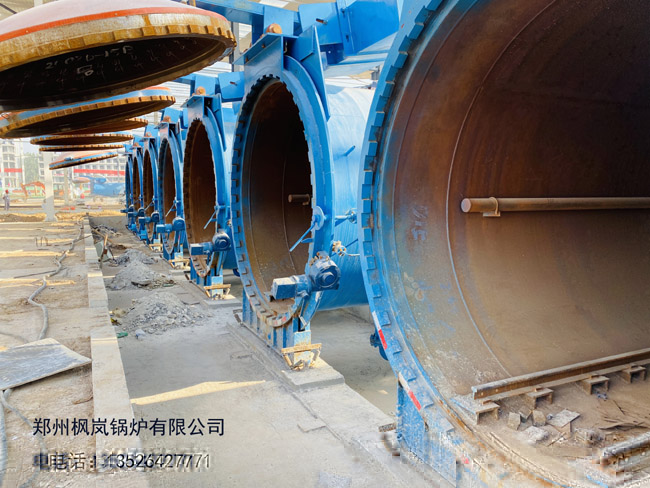

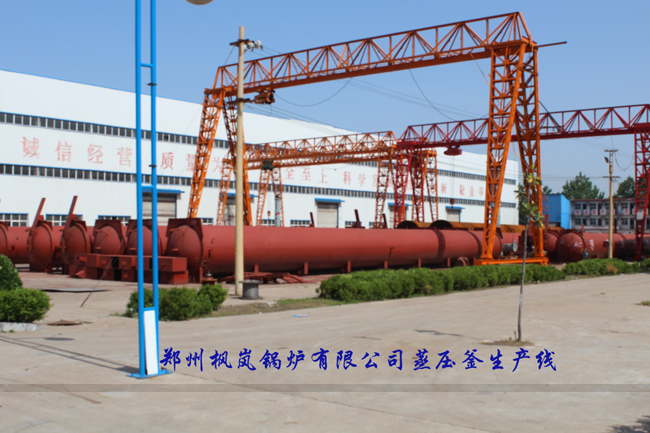

Autoclave production line

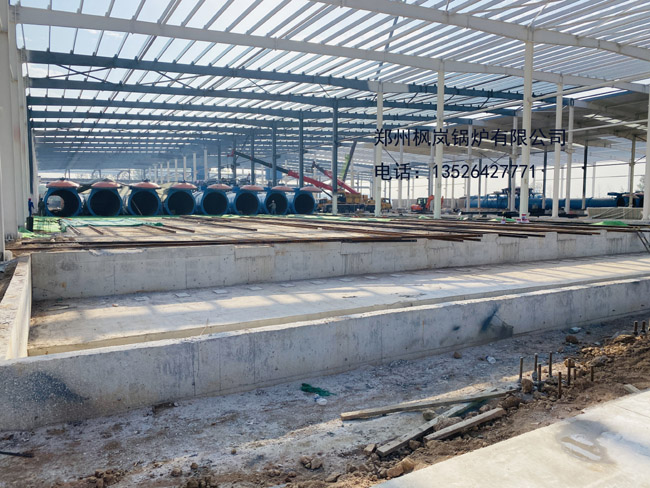

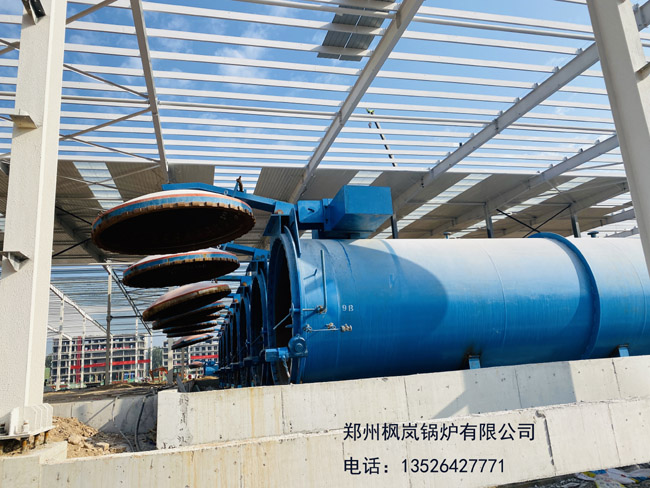

Autoclave installation site

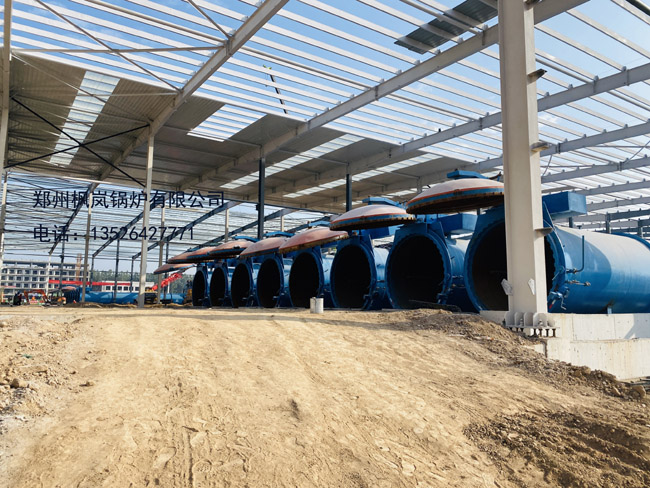

Autoclave installation site

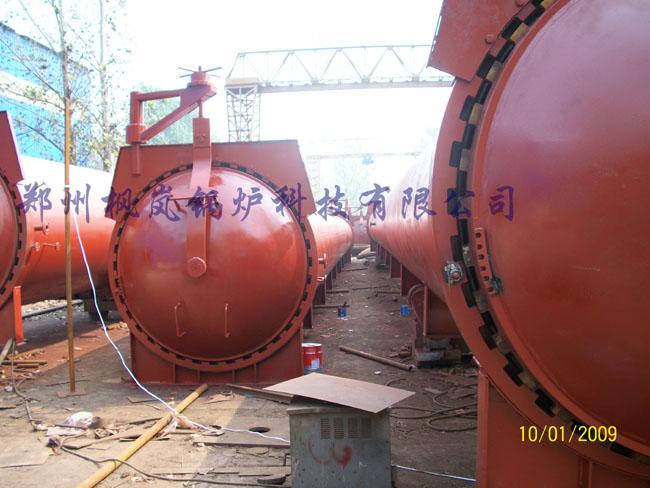

Preparation for autoclave shipment

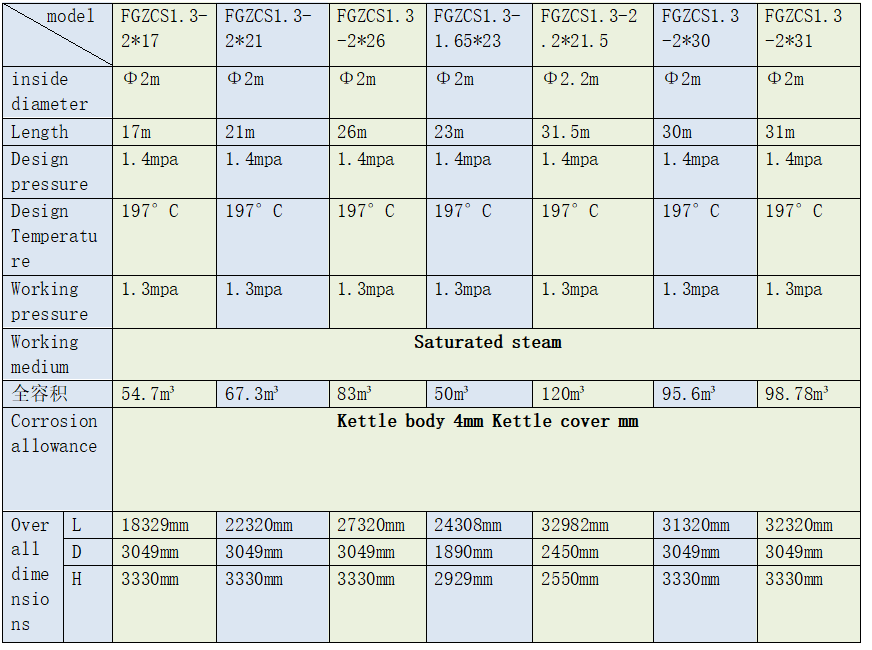

Autoclave parameters

Structure overview

This equipment is main part is mainly composed of the kettle body swing device, kettle cover device, device, rotating become warped rod, * * device, bearing, insulation, sealing device, instrument pipe valve, etc. Affiliated parts including drainage device and electric cabinet.


: 1, the kettle body device is mainly composed of cylinder flange welding. Flange circular uniformly distributed along the 36 tooth and the kettle cover flange uniform mesh 36 accordingly. Inside the kettle bottom laying track, can walk or pipe from the car parked. Body lateral decorate various header and take over, for the inlet and discharge of condensed water and various kinds of instrument installation, the valve.

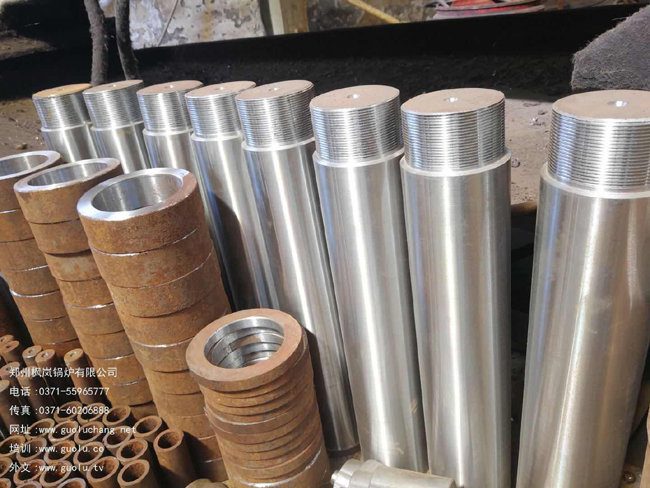

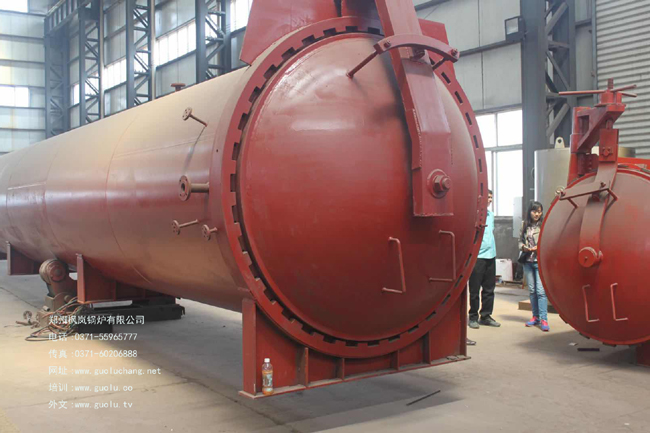

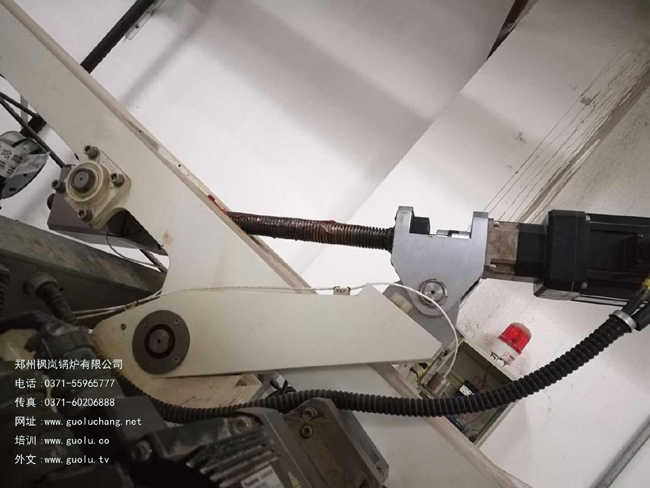

Private servers motor automatically open the door with the chain

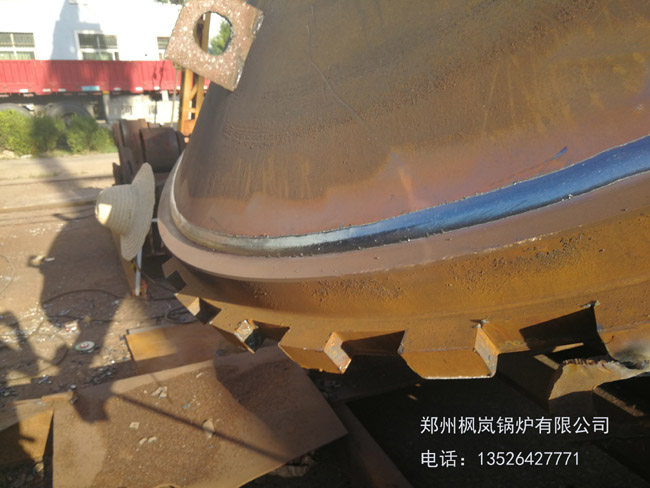

2, the kettle body device: mainly by the kettle cover flange, tooth plate, dome welded together. Through the hanger and short axis will kettle lid hanging in the kettle body end, and can free rotation. By uniform 36 around the flange and the kettle body flange 36 tooth meshing, closing of reaction caldron in the aeroconcrete role.


3, swing device: the main shaft, cantilever beam, plate, hanging plate, rod, etc. Installed on the tank top of the end, through the pull rod connected to the kettle lid hanging plate, suspension and rotary kettle cover device.


4, rotating become warped rod: fixed in the kettle body flange profile, mainly composed of a tooth plate and a rod. Through become warped up dynamic tooth plate, drive the kettle lid rotation around the center axis, the kettle body and kettle cover flange tooth can be engaged or disengaged.


5, a * * device: fixed in the kettle body flange side, by the actuator, seat and * * pin, etc. * * pin inserted, kettle lid is closed, locked kettle lid can't turn. When you start the kettle lid, kettle over the row of the first, from the * * pin. To open the kettle cover, to avoid danger.


6, support: used as a supporting body, by the intermediate bearing, bearing and end bearing, etc. In addition to the intermediate bearing fixed, the rest of the bearing with the aid of roller, can move the body axis, meet the need of the kettle body expansion.


7, insulation layer: mainly by the insulation materials and skeleton, guard board, etc; Prevent heat lost when using reaction caldron in the aeroconcrete (user according to the nature of heat preservation material since the thickness).

8. Sealing device: It is composed of a sealing ring, a stop valve and a steam inlet elbow. The sealing ring is embedded in the sealing groove of the flange of the kettle body. During the boosting stage, the external steam enters the sealing groove through the elbow and the valve, and is pressurized on the gasket to seal the end face of the kettle cover. After reaching the rated pressure, it passes through the elbow to the kettle body itself. Steam pressure is sealed.

9. Valve instruments: including pressure gauges, safety valves, thermometers, ball valves, etc., to ensure the safe use of the autoclave.

10. Drainage device: It plays the role of discharging condensed water, and is composed of drainage pipe connector, steam trap, sewage valve and so on. By connecting with the bottom of the kettle body, the condensed water is condensed in the coupler and then discharged through the steam trap. The drain valve can discharge a large amount of condensed water and sludge from time to time.

11. Electric control box: including electric contact pressure gauge, solenoid valve, pressure alarm device, etc., to ensure the safe use of the kettle.

12. Electrical safety interlock device: including control cabinet, pressure controller, reducer locking device assembly, etc., meeting the requirements of Article 49 of the "Regulations" to ensure the safe use of the kettle.
