WRF gas (oil) hot boiler

Fuel gas hot stove

Fuel gas hot stove

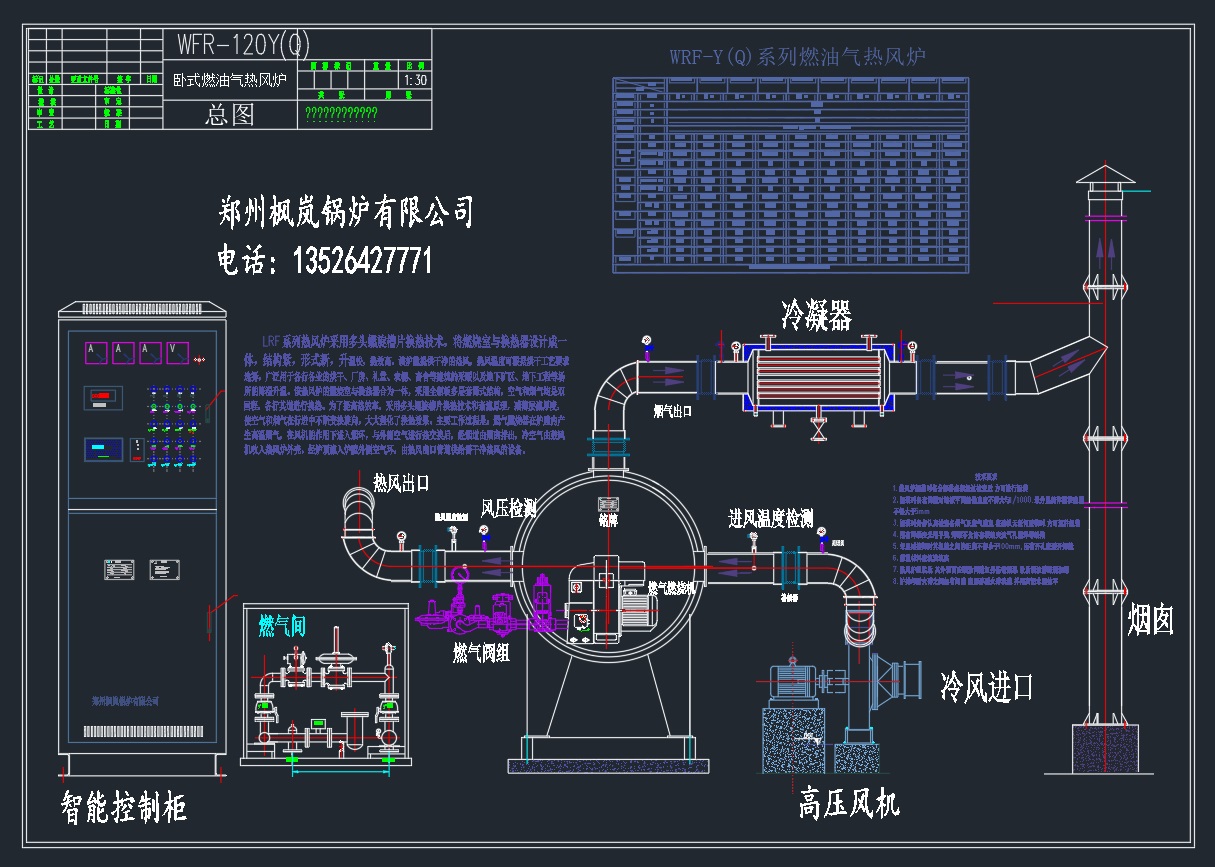

System flow chart

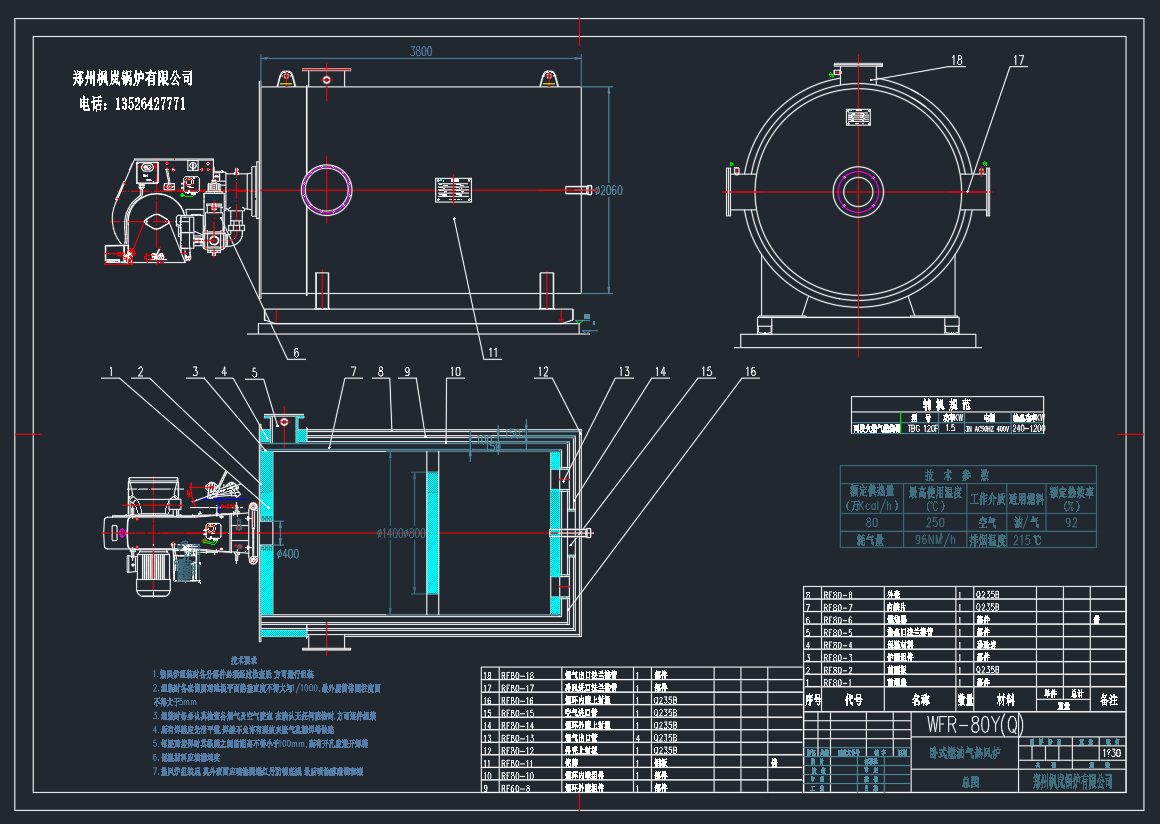

General plan

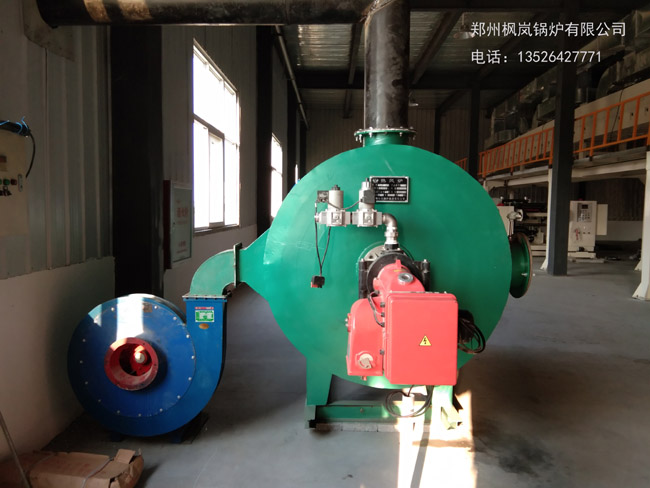

Hot stove

1. Performance characteristics of oil-fired hot air boiler:
   The high-temperature hot air boiler developed by Fenglan Company adopts a vertical or horizontal multi-return structure, and its hot air temperature can reach a        drying process within 600 °C.

1. The long helical groove plate heat transfer technology and turbulent flow theory, enhanced heat transfer effect greatly.


2. All steel multi-layer bushing structure, air and flue gas are double return, improves the thermal efficiency.


3. The combustion chamber and the heat exchanger design, compact structure.


Run 4. No pressure, no explosion danger, this series of furnace heating temperature is high.


5. With a range of heating, hot air temperature can be adjusted according to the use of automatic process control.


6. Flow with air as medium, hot air clean pollution-free, environmental protection very much.


7. More suitable for areas where poverty is lack of water use.


Scope of application: wood chemical industry, food, medicine tobacco metallurgy ceramic drying forage feed and industrial materials, printing and dyeing drying paint industry, factory building, hall, plastic greenhouse heating, underground mines, underground engineering and so on need of dehumidification drying temperature

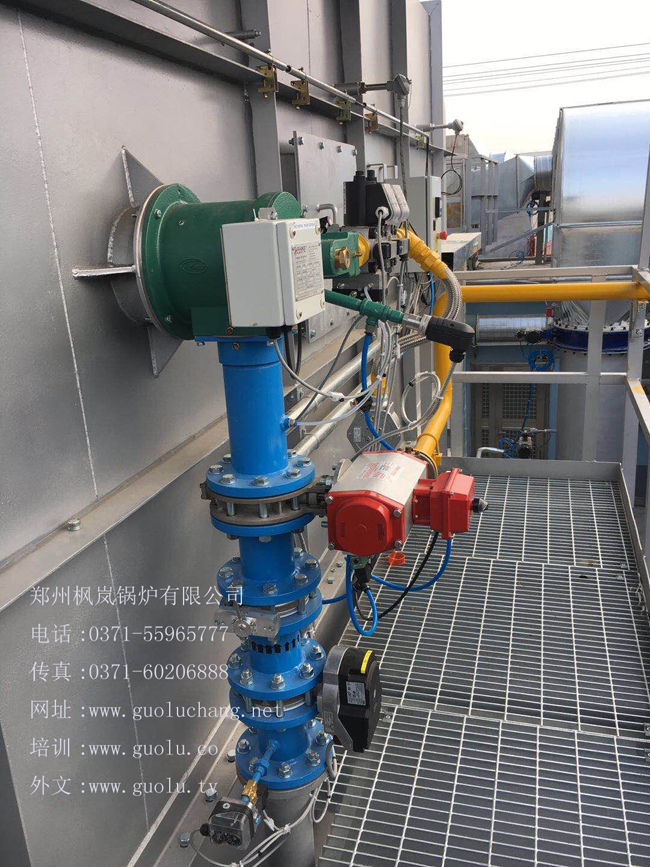

The following is a gas fuel technology

Second, the imported burner technology, performance characteristics:


1, can adapt to * * type of combustion chamber.


2, mechanical atomizing pressure.


3, by adjusting the combustion air and burner, burning effect can be obtained.


4, do not need to turn the burner to be removed from the boiler, it can be directly removed atomization device, maintenance is convenient.


5, manual adjusting the air flow.


Three, the control function performance characteristics

Hot-blast boiler control cabinet adopts fully automatic control system, this system has strong artificial intelligence, the boiler automatic running, can real-time monitor the working condition, real-time and * * of hot-blast boiler intelligent fault diagnosis and treatment, the control system can real-time diagnosis and treatment of the following faults:


1, the burner failure protection


System operation process, the controller burner output stall after fault signal is detected, the alarm prompt, combustion equipment, manual reset after fault recovery;


2, over temperature fault (set)


System operation process, the controller temperature protect temperature controlled area is detected, the alarm prompt, combustion equipment, manual reset after fault recovery;


3, burner motor overload protection


Burner motor overheating, flow thermal relay action, cut off power supply fan, by the hardware implementation;


4, power failure protection


Power outages, appeared in the process of system running again, the system automatically in the work state, make sure the system * *;


The function of the hot blast stove is very much, if you choose to according to their requirements. Dry heating stove, for example, it has hot air clean, fast, no hot water boiler water processor, radiators and other ancillary equipment, there is no pressure to enable convenient, low cost, compared with hot water, steam boiler, investment save more than 40%, operation cost can save more than 30%, is widely used in food drying, such as seafood (fish, shrimps, kelp silk, etc.) drying, vegetables (such as garlic) dehydration; Chemical drying: such as biological fertilizer heating, white carbon black drying; Building materials drying: many microporous calcium silicate, exterior insulation board drying, glass magnesium board aging treatment; Chinese herbal medicine drying, such as liquorice, chrysanthemum, salvia miltiorrhiza drying; Mat drying; Carton drying; The lacquer that bake, workshop, flower exhibition hall, birdhouse, heating, etc.



Service commitment
Maple haze with * * products and good pre-sale, sale and after-sales service, to meet the requirements of customers.
Pre-sale can cooperate with the user in according to the design and process design, to meet the requirements of customers.
Provide after sales service personnel to the scene to guide the user equipment installation, responsible for supply equipment debugging, cooperate with the test run.
Free training for users, until can skilled operate the equipment.
The running services; Can be arranged according to the user's requirements experienced technical personnel to the scene to solve the problem, until the user satisfaction

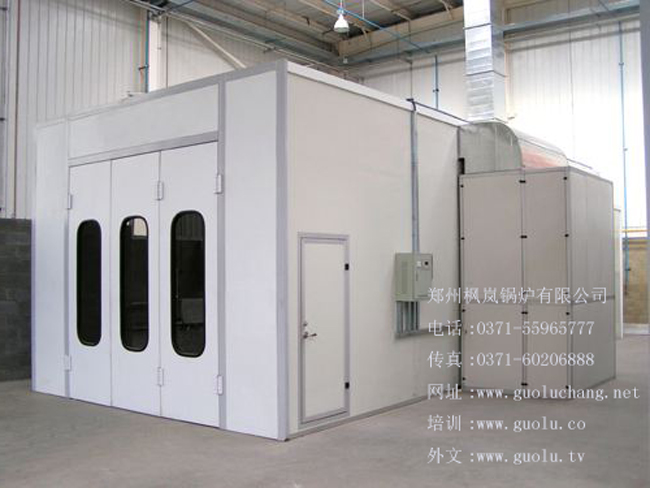

Drying room
