DR reaction kettle enamel reaction kettle

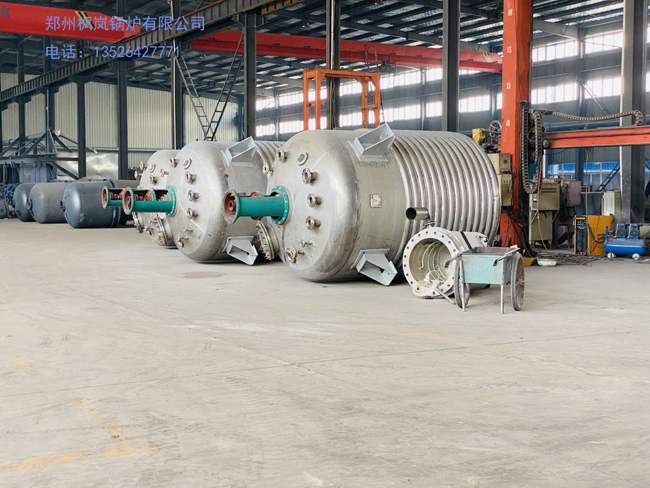

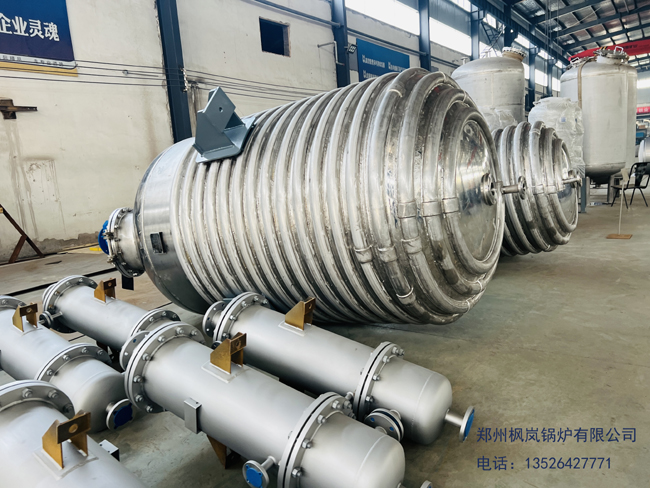

Reactor with tube, enamel reactor, stainless steel reactor, closed reactor

Reactor with tube, enamel reactor, stainless steel reactor, closed reactor

Reactor with tube, enamel reactor, stainless steel reactor, closed reactor

Reactor with tube, enamel reactor, stainless steel reactor, closed reactor

Reactor with tube, enamel reactor, stainless steel reactor, closed reactor

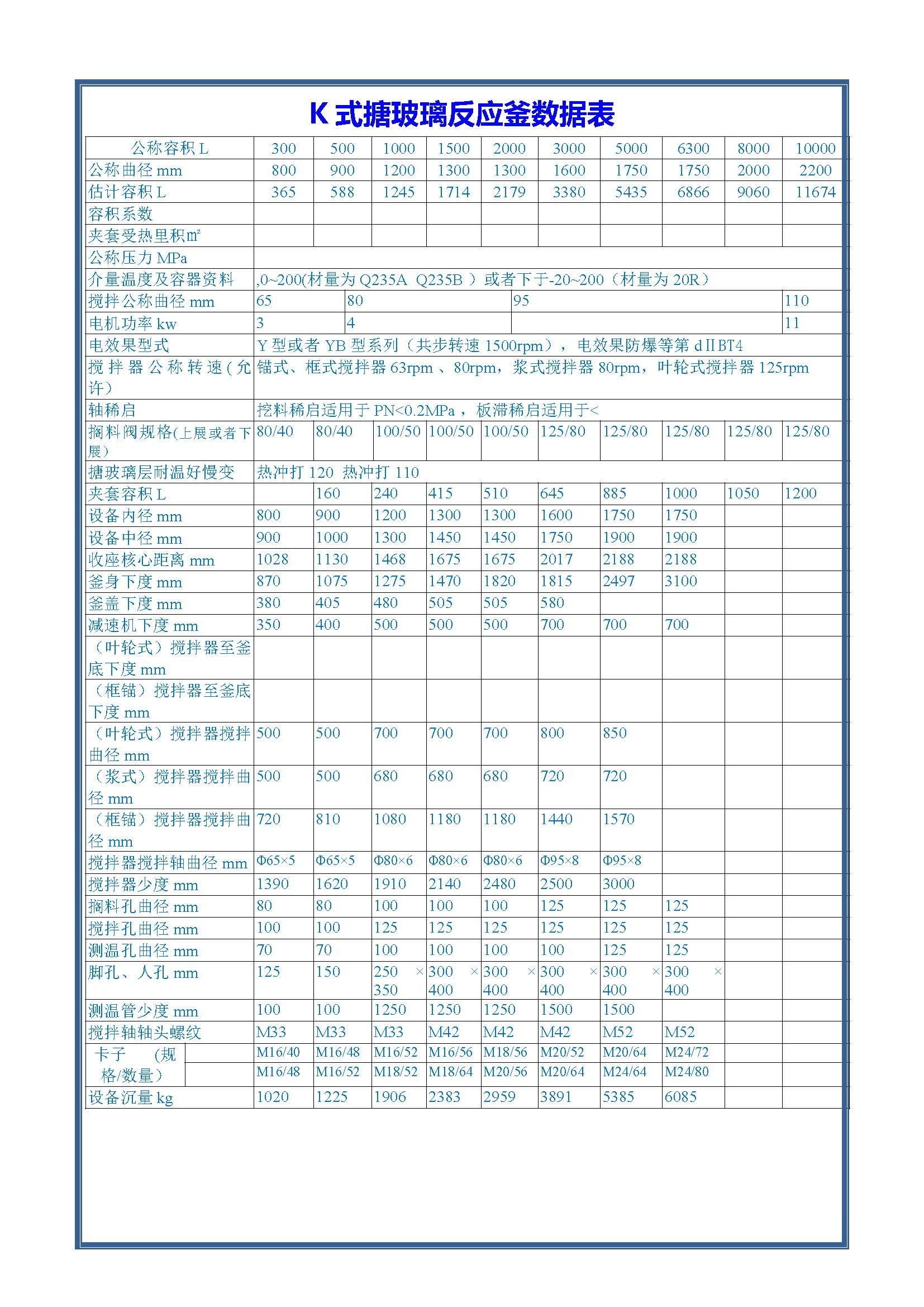

K-type reactor technical parameters

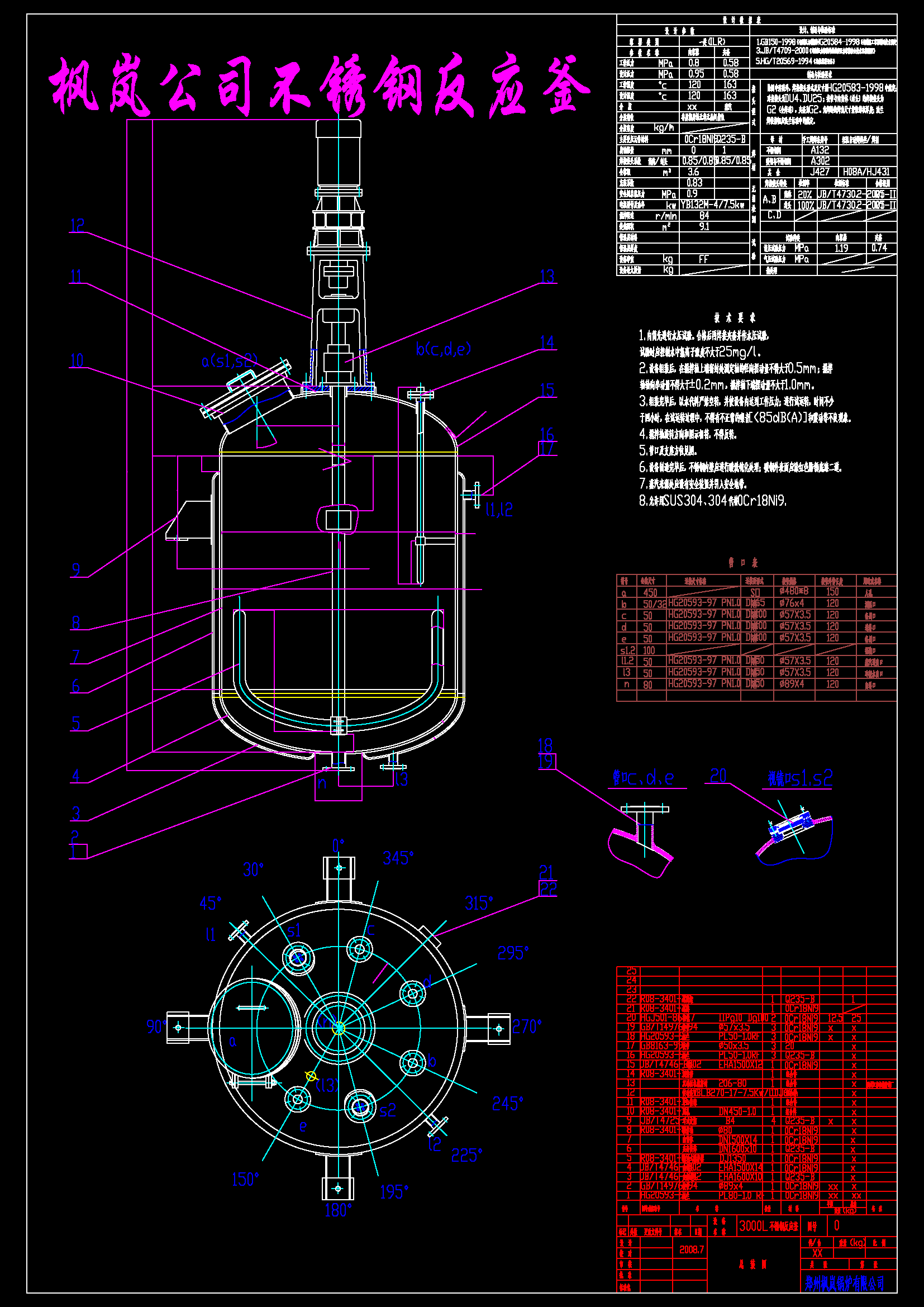

Technical parameters of stainless steel reactor

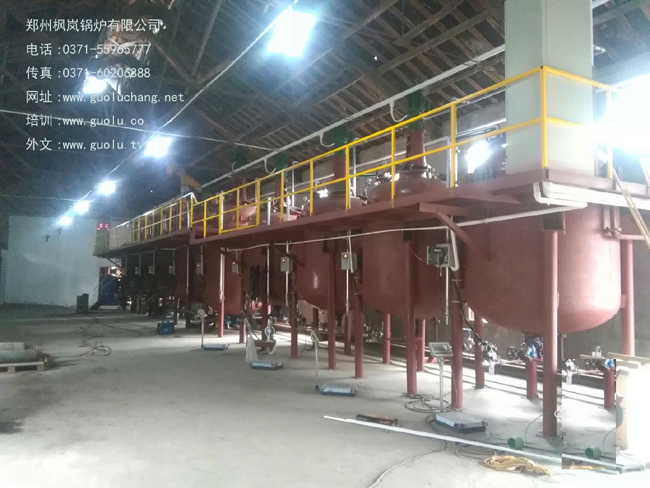

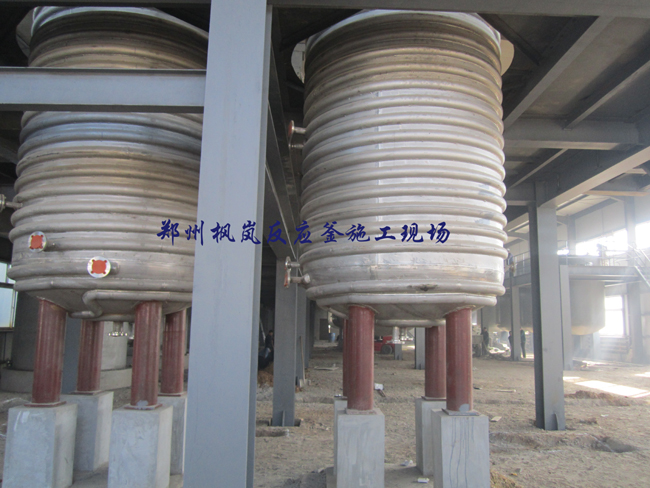

Coiled tube reactor construction site

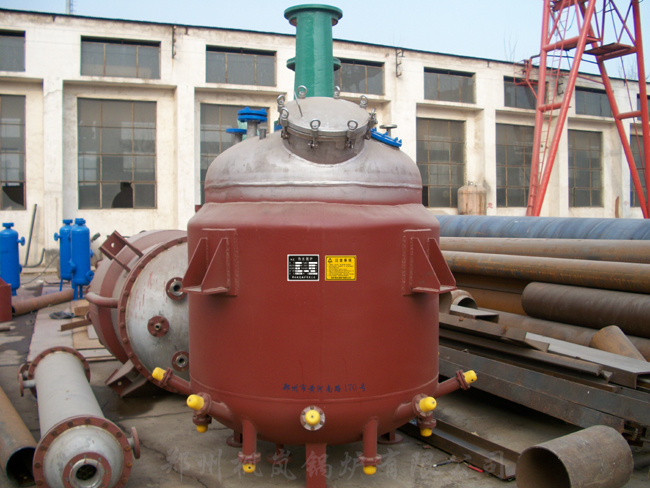

Electric heating reactor

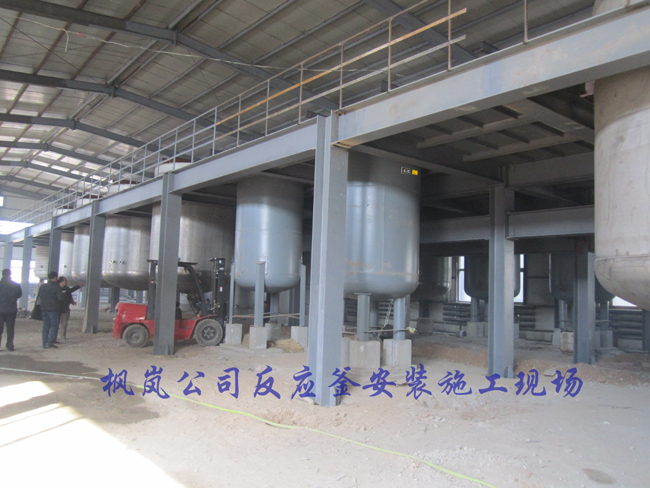

Reactor heat conduction oil heating complete set of equipment

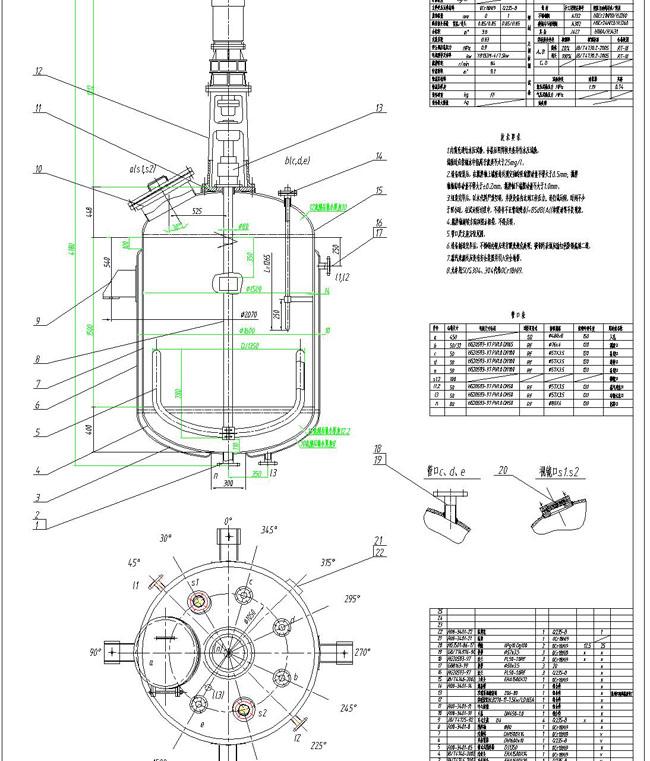

Enamel Reactor Technical Parameters

According to the heating/cooling method, it can be divided into electric heating, hot water heating, thermal oil circulation heating, far infrared heating, external (inner) coil heating, etc., jacket cooling and kettle internal coil cooling, etc. The choice of heating method is mainly related to the heating/cooling temperature required by the chemical reaction and the amount of heat required.

According to the material of the kettle body, it can be divided into carbon steel reactor, stainless steel reactor, glass-lined reactor, and steel-lined reactor.

Carbon Steel Reactor

Scope of application: environments without corrosive liquids, such as certain oil processing.

Stainless Steel Reactor

Scope of application: suitable for high temperature and high pressure chemical reaction tests in petroleum, chemical industry, medicine, metallurgy, scientific research, Fenglan Boiler Company , used to complete hydrolysis, neutralization, crystallization, distillation, evaporation, storage, hydrogenation, alkylation, Polymerization, heating mixing, constant temperature reaction and other processes can achieve high stirring effect for viscous and granular substances.

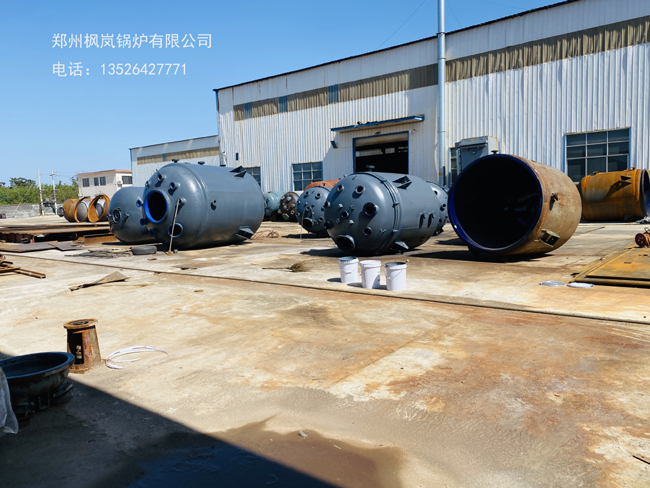

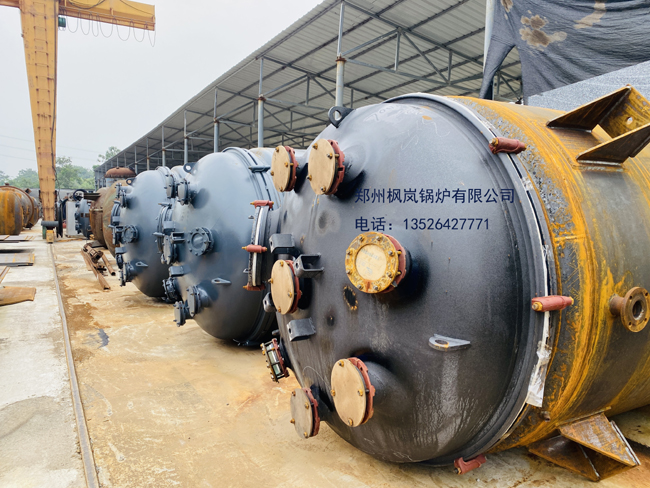

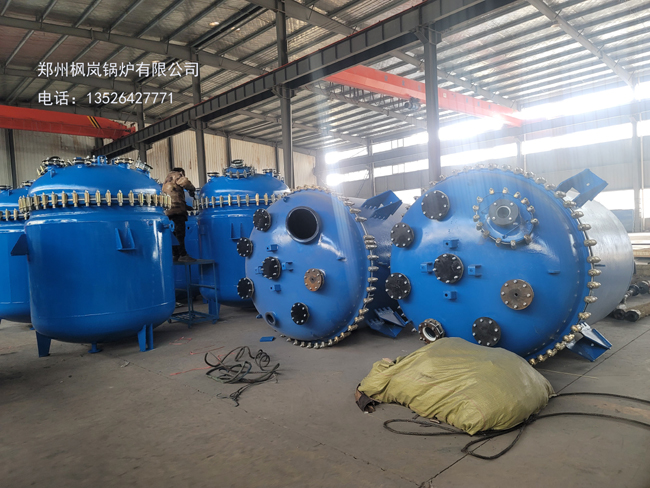

Glass-lined reactor

Scope of application: Widely used in petroleum, chemical, food, medicine, pesticide, scientific research and other industries.

Steel lined PE reactor

Scope of application: suitable for acids, alkalis, salts and most alcohols. It is suitable for the extraction of liquid food and medicine. It is an ideal substitute for rubber-lined, FRP, stainless steel, titanium steel, enamel, and plastic-welded plates.

Steel lined ETFE reactor

Scope of application: Excellent anti-corrosion performance, can resist various concentrations of acids, alkalis, salts, strong oxidants, organic compounds and all other strong corrosive chemical media.

3. According to the internal pressure during work, it can be divided into normal pressure reactor, positive pressure reactor and auxiliary pressure reactor.

4. According to the mixing form, it can be divided into paddle type, anchor paddle type, frame type, screw belt type, turbine type, dispersing disc type, combined type, etc.

5. According to the heat transfer structure, it can be divided into jacket type, outer half-pipe type, inner coil type and combined type.
