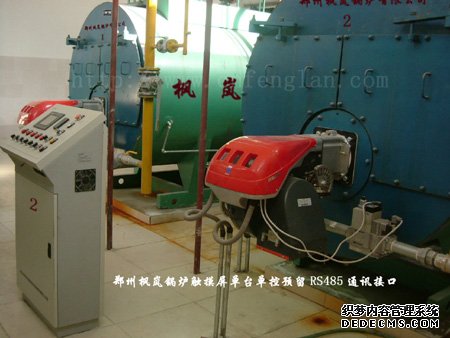

Gas boiler boiler room layout touch screen control RS485 communication interface

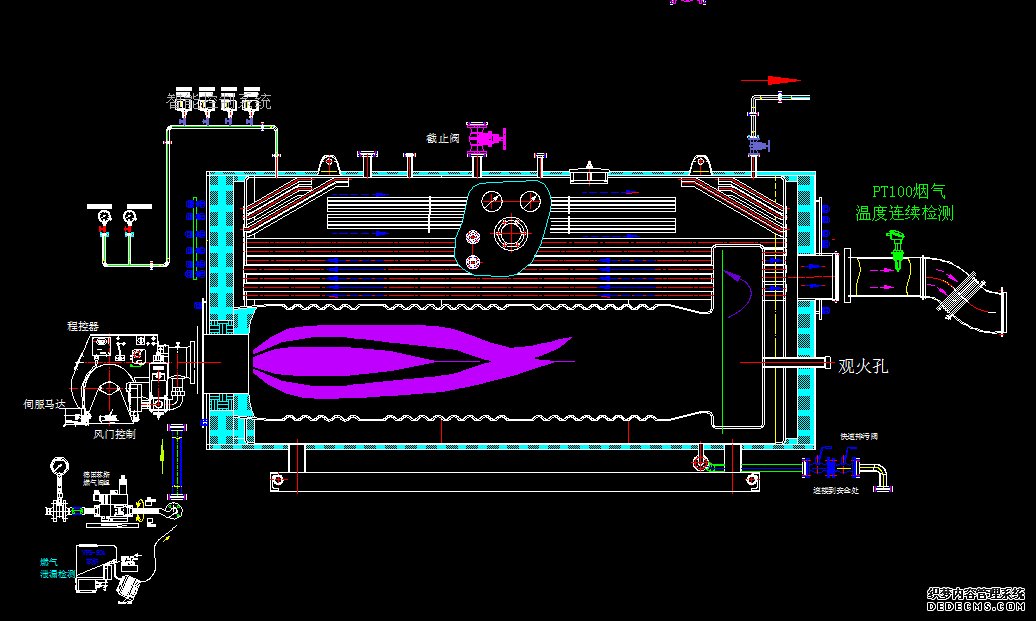

WNS horizontal three-pass corrugated furnace

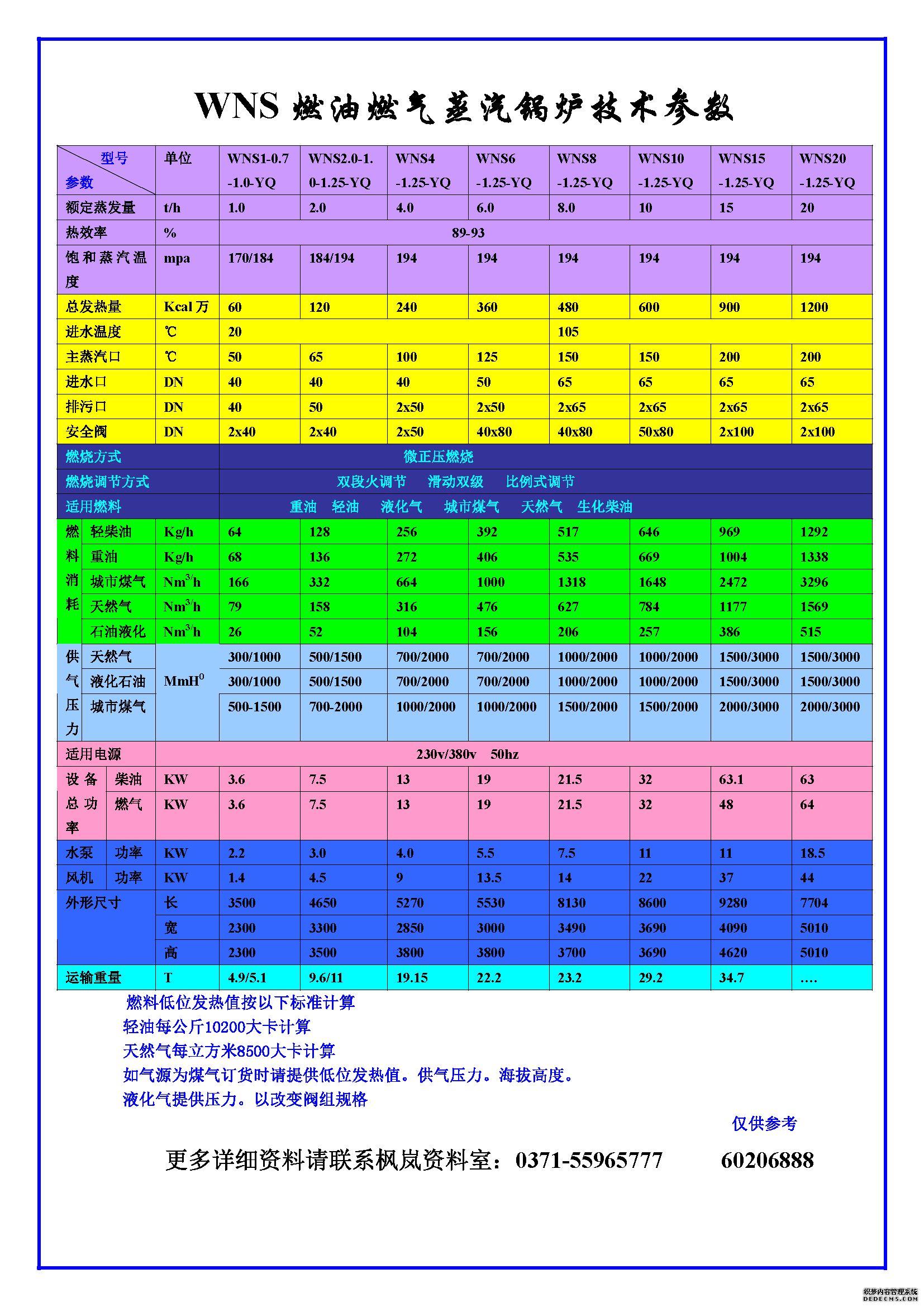

Gas steam boiler technical parameters and gas consumption

 Fenglan Boiler's supporting oil and gas boiler burners all use world-renowned brand burners. The product performance is superior, the continuous operation stability is good, and the failure rate is almost zero. Open 24-hour customer consultation telephone, technical consultation, product troubleshooting, product technical training , to provide a guarantee of safe operation of the product at all times.

The range of burners sold incorporates the basic principles of the following directives

◆ 90/396/EEC (Gas Application Directive ◆ 92/42/EEC (Boiler Efficiency Directive)

◆ 89/336/EEC (Electromagnetic Compatibility Directive) ◆ 73/23/EEC (Low Voltage Directive)

◆ 98/37 EEC (Machinery Directive)

And refer to the European standard for test design

The control system adopts MD series Chinese LCD screen or touch screen as the display and operation platform, and Siemens PLC series CPU as the information processing and central control unit; at the same time, it embeds the well-designed industrial control software developed and designed by Fenglan Company and the process structure of the control periphery . The system software not only realizes the general monitoring requirements such as manual/automatic control, working condition monitoring, and real-time trend of gas and oil-fired boilers (including coal-fired boilers), but also adds Fenglan Company's careful analysis and analysis of boiler accidents in recent years. The results of the research have rich functions of fault detection, fault alarm, fault information processing and query, etc., which ensure the safe and reliable operation of the boiler. And the standard RS-485 communication interface is reserved to connect with a computer to realize remote monitoring or DCS connection.
