No boiler inspection, no certificate boiler (not reported to the Technical Supervision Bureau)

 Electric hot water boiler

Electric heating boiler, water and electricity separation

 Ceramic electric heating tube boiler

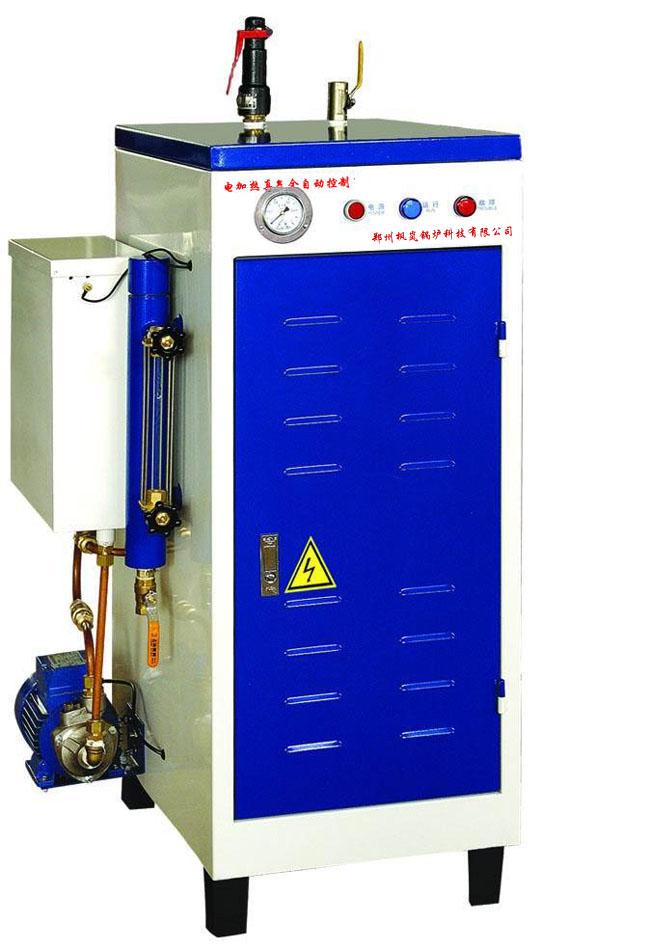

Small electric heating furnace, electric steam generator

electric steam generator

Electric hot water technical parameters

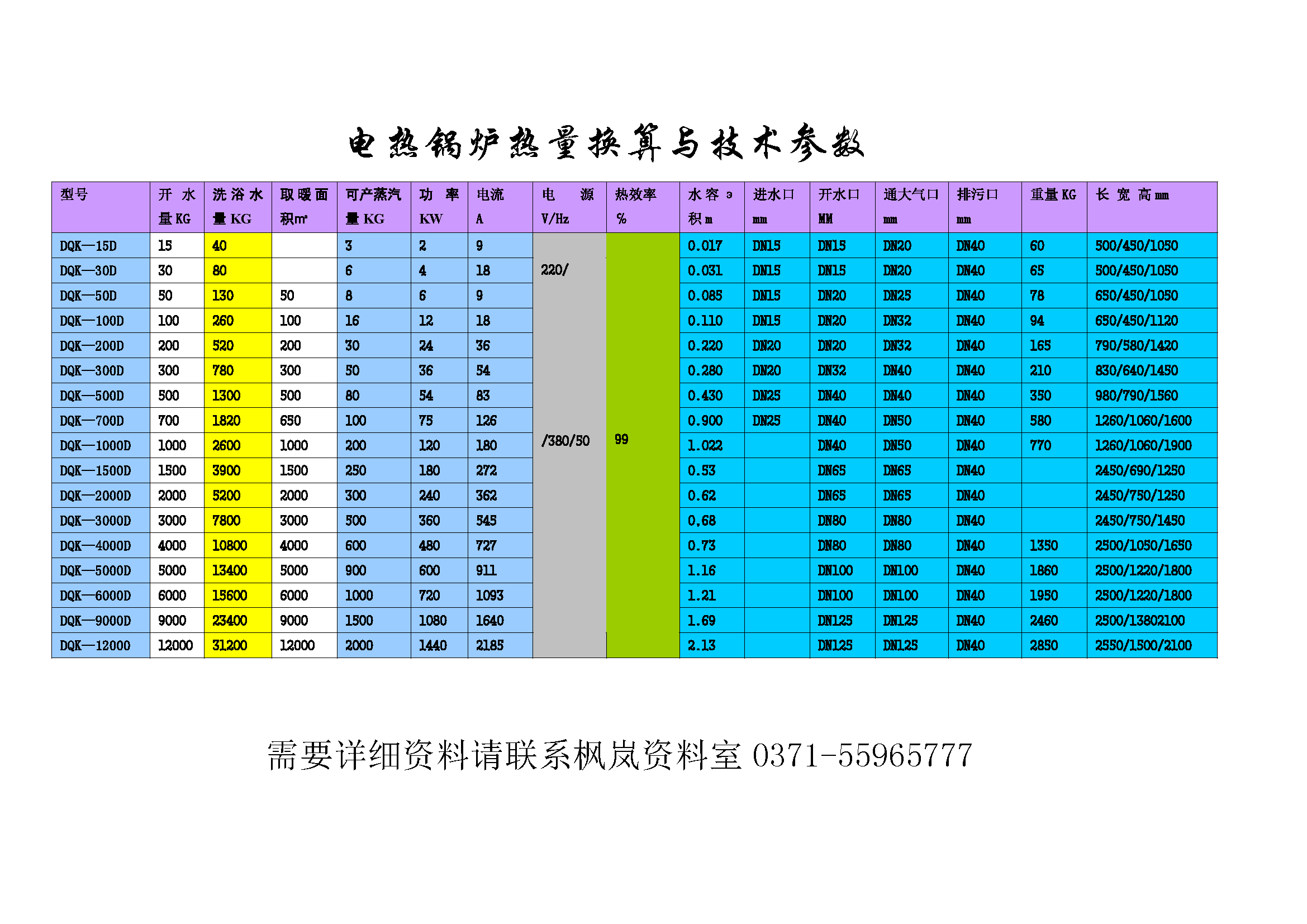

Conversion ratio of electric heating furnace

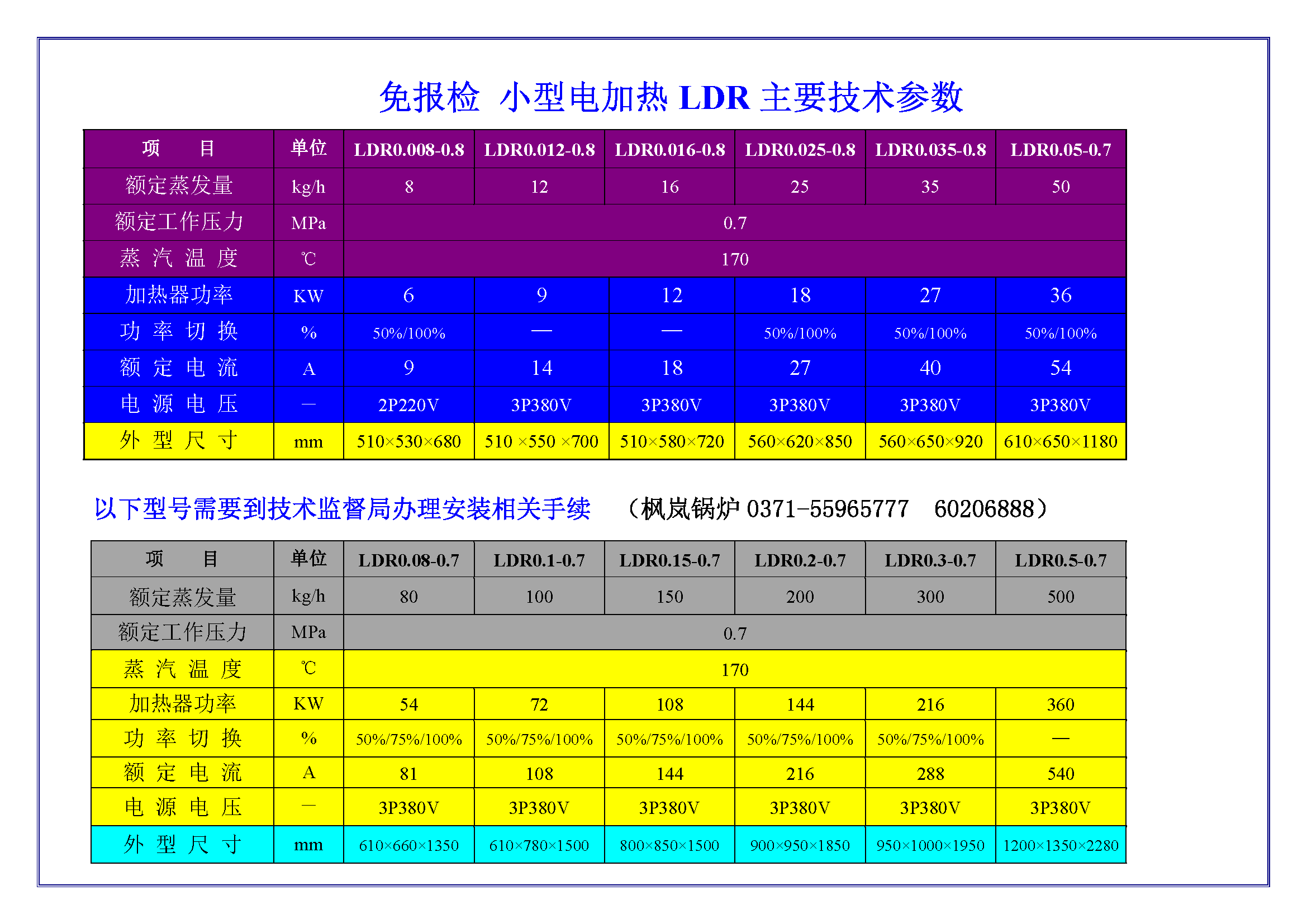

Technical Parameters

1. Fully automatic computer control, no special operation is required, and it can work automatically within the set time, saving energy, reducing heat loss, and reducing usage costs.

2. The heating element adopts ceramic heating tube with stable performance, advanced water and electricity separation structure, the safety performance and service life have been fully improved, and it is convenient for maintenance, and the electric heating tube can be replaced without draining water.

3. Chinese LCD display, digital display temperature, control temperature, over-temperature protection and fault alarm and other automatic control functions.

4. The perfect combination of water level sensing system and intelligent water inlet device, automatic induction replenishment.

5. The step-by-step heating method reduces the impact on the power grid.

6. When it is set to the boiling water state, it is connected to a special heat preservation water tank, which can fully meet the large-scale centralized water demand of hospitals, schools and other enterprises and institutions, and the water intake and replenishment are also fully automatic modes.

7. When it is set to the hot water state, after the hot water reaches the set temperature, the intelligent water inlet device will automatically turn on and push the hot water into the hot water storage tank for bathing.

8. The inner tank is specially treated to ensure clean and hygienic water quality, and the application of thermal insulation materials is guaranteed, so that the automatic thermal insulation after shutdown can achieve good results.

9. The shell is made of imported color plate, which is beautiful and generous, and not easy to corrode.

10. No pollution, no noise, no pollution.

The control of the electric heating tube adopts fuzzy control. According to the outlet water temperature of the boiler, it is compared with the set lower limit temperature and upper limit temperature of the boiler, and the heating group is switched on or off according to a certain period of time. When the temperature reaches the middle value between the upper limit and the lower limit temperature, after each addition or subtraction of a heating group, compare the collected temperature with the set value to decide whether to continue adding or subtracting heating groups. Normal startup, heating tube adds one group every 10 seconds, when reaching the middle value of lower limit and upper limit, it adds one group every 30 seconds; when it stops normally, one group is subtracted every 3 seconds. When there is a fault, one group is subtracted every 1 second.
